Item

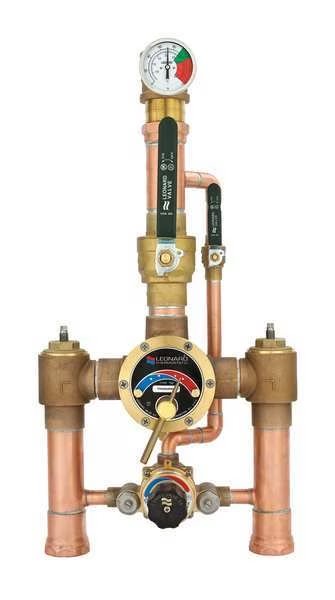

Thermostatic Mixing Valve
Temp. Range
60 Degrees to 200 Degrees F
Inlet Temperature (Hot)
120 Degrees to 200 Degrees F
Inlet Temperature (Cold)
40 Degrees to 85 Degrees F
For Use With
Domestic Hot Water Applications
Includes
Adjustable Limit Stops Set, Color Coded Dial, Color Coded Dial Thermometer, Inlet Piping Manifold, Integral Hot and Cold Supply Check-stops, Locking Temperature Regulating Handles, Outlet Ball Valve Shutoffs
Connection Size - Outlet
2 in
Series
Next Generation High-Low
Connection Size - Inlet
2 in
Inlet Connection Size - Cold
2 in
Operating Temperature - Maximum Outlet
200 Degrees F
Outlet Connection Size
2 in
Includes Temperature Gauge
Temperature Gauge Included
Inlet Temperature - Maximum Cold
85 Degrees F
Inlet Temperature - Minimum Hot
120 Degrees F
Inlet Temperature - Minimum Cold
40 Degrees F
Inlet Connection Type - Cold
NPT
Operating Pressure - Minimum
30 psi
Operating Temperature - Minimum Outlet
60 Degrees F
Inlet Temperature - Maximum Hot
200 Degrees F
Inlet Connection Size - Hot
2 in
Outlet Connection Type
NPT
Operating Pressure - Maximum
125 psi
Inlet Connection Type - Hot
NPT
Coefficient of Volume (Cv)
Not Applicable
Country of Origin (subject to change)
United States
