Item

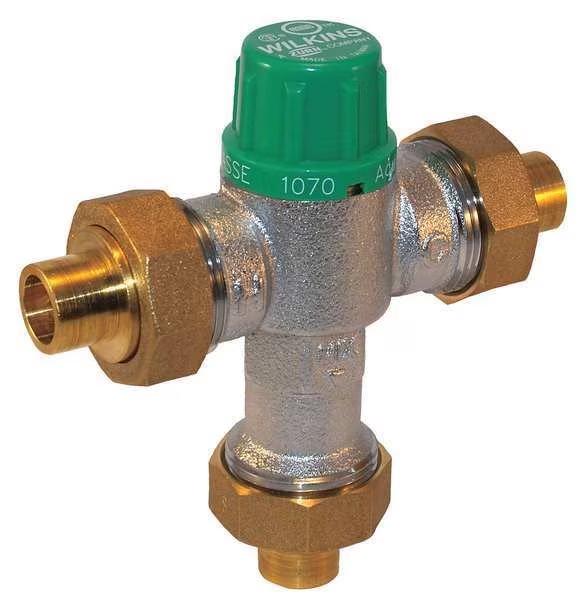

Thermostatic Mixing Valve
Temp. Range
95 Degrees to 115 Degrees F
Standards
ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9
Inlet Temperature (Hot)
120 Degrees to 195 Degrees F
Inlet Temperature (Cold)
40 Degrees to 75 Degrees F
Material of Construction
Low Lead Bronze
Connection Size - Inlet
3/8 in
Connection Size - Outlet
3/8 in
Inlet Connection Size - Cold
3/8 in
Inlet Temperature - Maximum Hot
195 Degrees F
Operating Pressure - Minimum
125 psi
Inlet Temperature - Minimum Cold
39 Degrees F
Inlet Connection Size - Hot
3/8 in
Inlet Connection Type - Hot
Compression
Inlet Connection Type - Cold
Compression
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Temperature - Minimum Hot
120 Degrees F
Operating Temperature - Maximum Outlet
115 Degrees F
Outlet Connection Type
Compression
For Media
Hot Water, Water
Operating Temperature - Minimum Outlet
95 Degrees F
Outlet Connection Size
3/8 in
Inlet Temperature - Maximum Cold
80 Degrees F
Coefficient of Volume (Cv)
Not Applicable
Operating Pressure - Maximum
145 psi
Country of Origin (subject to change)
Taiwan, Province of China
