| Property | Value |
|---|---|
| Shaft Locking Type - Couplings | 1 Piece Clamp |
| Bore Dia. | 1/2 in x 5/16 in |
| Rated Torque | 50 in-lb |
| Max. RPM | 6,000 RPM |
| Outside Dia. | 1.25 in |
| Overall Length | 1 3/4 in |
| Material - Couplings | Aluminum |
| Torque (In.-Lbs.) | 50 |
| Max. Angular Misalignment | 3 Degrees |
| Item | Motion Control Coupling |
| Screw Type | Cap Screw |
| Clearance Dia. (In.) | 1.459 in |
| Outside Dia. (In.) | 1.250 |
| Finish | Bright |
| Style | 6 Beam Clamp |
| Max. Parallel Misalignment (In.) | 0.015 in |
| Max. Axial Misalignment (In.) | +/-0.010 |
| Item - Motion Control Couplings | Motion Control Coupling |
| Screw Size (mm) | M5 |
| Length through Bore (In.) | 0.875 |
| Max. Temp. Range (F) | 225 |
| Max. Temp. | 225 Degrees F |
| Torsional Stiffness (Deg./In.-Lbs.) | 0.072 |
| Material | Aluminum |
| Overall Length (In.) | 1.75 |
| Length through Bore | 0.875 in |
| Screw Size | M5 |
| Axial Motion | 0.01 in |
| Moment of Inertia | 0.0401 lb-in sq |
| Bore Tolerance | +0.001/-0.000 in |
| Dynamic Torque Reversing | 12.5 lb-in |
| Screw Material | Alloy Steel with Nypatch |
| Dynamic Torque Non-Reversing | 25 lb-in |
| Number of Beams | 6 |
| Full Bearing Support Required | Yes |
| Parallel Misalignment | 0.015 in |
| Different Bore Sizes | Yes |
| For Environment | Angular Misalignment, Axial Motion, Parallel Misalignment |
| Angular Misalignment | 3 Degrees |
| Application | Light-Duty Power Transmission, Servo Motors to Lead Screws |
| Coupling Material Finish | Bright |
| Maximum Torque | 50 in-lb |
| Standards | Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant |
| Torsional Stiffness | 13.89 in-lb/Deg |
| Screw Material Finish | Black Oxide |
| Minimum Operating Temperature | -40 Degrees F |
| Included Screws | (2) Hex Socket Cap Screw |
| Bore Type | Round |
| Bore Diameter 2 | 5/16 in |
| Zero Backlash | Yes |
| Coupling Outside Diameter | 1 1/4 in |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | +0.0000/-0.0005 in |
| Maximum Operating Temperature | 225 Degrees F |
| Length Through Bore 2 | 0.8 in |
| Coupling Material | Aluminum |
| Fastener Tightening Torque | 9.5 N-m |
| Length Through Bore 1 | 0.8 in |
| For Misalignment Type | Angular, Axial, Parallel |
| Features | Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single or Four Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Spiral Coupling With Nypatch Anti-Vibration Hardware, Two Sets of Three Spiral Cuts, Zero-Backlash |
| Maximum Speed | 6,000 RPM |
| Screw Thread Size | M5 |
| Coupling Material Grade | 7075 |
| Number of Locking Screws | 2 |
| System of Measurement | Inch |
| Series | FCR |
| Bore Diameter 1 | 1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

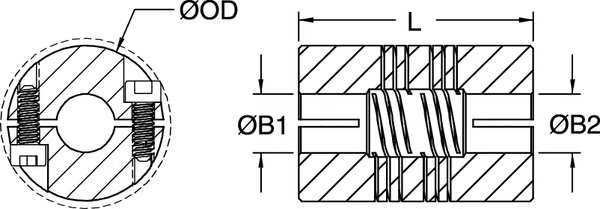

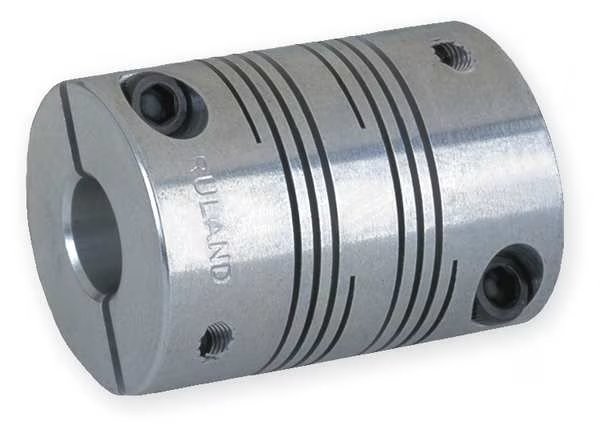

Coupling, 6 Beam Clamp, Bore 1/2 x 5/16 In, Ruland, Mfr#: FCR20-8-5-A
$74.29
Free shipping will be applied on orders over $50
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 1/2 in, Bore Diameter 2 5/16 in, Coupling Material Aluminum, Coupling Outside Diameter 1 1/4 in, Maximum Speed 6,000 RPM, Maximum Torque 50 in-lb, Axial Motion 0.01 in, Overall Length 1 3/4 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 13.89 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 0.8 in
9999 in stock
