| Property | Value |
|---|---|
| Motor Sub Application | Refrigerator/Freezer |
| HP | 1/15 |
| Output Watts | 50 W |
| RPM Range | 1,501-1,600 |
| Voltage | 208-230V AC |
| Phase | Single |
| Motor Shaft Rotation | CCWLE |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Nameplate RPM | 1,550 |
| No. of Speeds | 1 |
| Shaft Length | 1 in |
| Motor Application | HVAC/R |
| Frame | 3.3 |
| Shaft Dia. | 5/16 in |
| Motor Shaft Design | Flat |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 25 Degrees C |
| Capacitor Required | No |
| Hz | 60/50 Hz |
| Motor Mounting Type | Stud |
| Standards | CSA, UL |
| Plug Type | Round 2 Pin |
| Full Load Amps | 0.63 A |
| Application | Walk In Coolers, Freezers |
| Body Dia. | 3 5/16 in |
| Motor Mounting Position | Vertical Shaft Down |
| Motor Frame Material | Steel |
| Voltage Compatibility | 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC |
| Mounting Pattern | 2-4/5 in Diameter Bolt Circle |
| Duty | Continuous |
| Ambient Temperature | -40 Degrees to 25 Degrees C |
| Frame Material | Steel |
| Length Less Shaft | 4 1/16 in |
| Includes | Special Mounting Bracket - Direct Replacement for Hussman/Krack Units |
| Motor Design | ECM |
| Bolt Circle Dia. | 2 7/8 in |
| Overall Length | 4 13/16 in |
| Item | ECM Direct Drive Blower Motor |
| Ins. Class | B |
| Motor Thermal Protection | Electronic |
| Voltage @ 50Hz | 208-230V AC |
| Mounting Holes | 4 |
| Usable @ 200V | No |
| RPM @ 50Hz | 1,550 RPM |
| Number of Shafts | 1 |
| Duty Cycle | Continuous |
| Full Load Amps @ 50Hz | 0.63 A |
| Usable @ 208V | Yes |
| Mounting Stud Pattern | 2 4/5 in |
| HP @ 50Hz | 1/15 |
| Weight | 4 lb |
| Lead Length | 15 in |
| Mounting | Stud |
| Number of Speeds | 1 |
| Frequency | 60/50 Hz |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

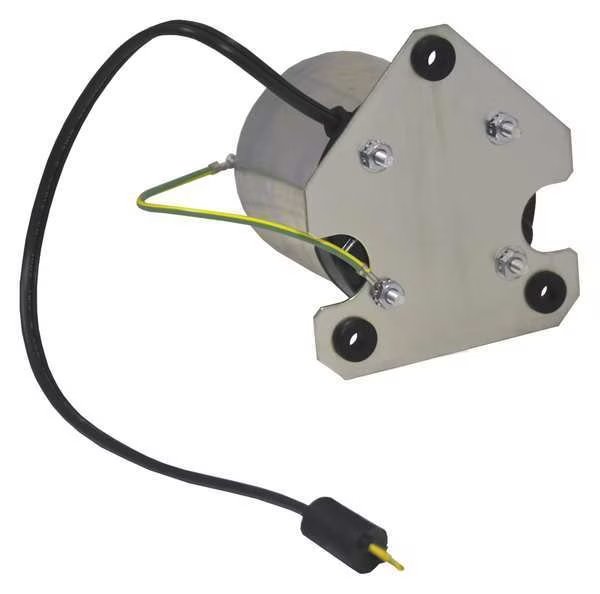

Brushless DC Motor, ECM, 1/15 HP, 208/230V, Morrill, Mfr#: 5204A
$241.99
Free shipping will be applied on orders over $50
ECM Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1/15 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 0.63 A, 3.3 Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Electronic, 60/50 Hz Hz, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 25 Degrees C, Duty Cycle Continuous, Lead Length 15 in, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position Vertical Shaft Down
9999 in stock
