Item

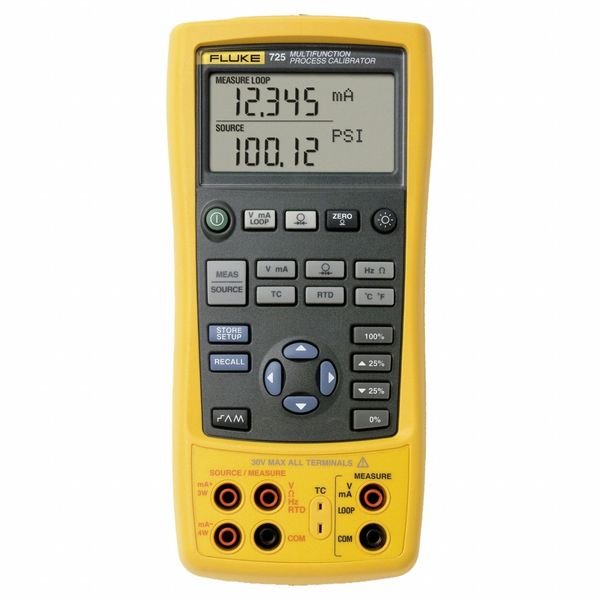

Multifunction Calibrator
Includes
Alligator Clips, Stackable Test Leads, Test Leads
Calibration Certificate
NIST
Standards
ASNI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1:1992, EN 61010-1:1993
Resistance Source
1,500 to 3,200 ohm
Thermocouple Temperature Range
-200 Degrees to 1800 Degrees C, -328 Degrees to 3182 Degrees F
Resistance Measurements
1,500 to 3,200 ohm
Voltage Measurement Range
-10 to 75 mV
Basic DC Accuracy
0.02% + 2 Counts; 0.02% + 2 Counts (lower Display); 0.02% + 2 Counts (upper Display); 0.025% + 1 Count (via Tc Connector)
RTD Type
Ni120, Pt100 (385), Pt100 (393), Pt100 (JIS), Pt1000 (385), Pt200 (385), Pt500 (385)
Source/Simulate
Hertz, mA, mV, Ohms, V
Frequency Measurement Range
1 to 10 kHz
Source Voltage
-10 to 75 mV
Current Measurement Range
0 to 24 mA DC
Manufacturers Warranty Length
3 yr
Safety Rating
ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1:1992, EN61010-1:1993
Thermocouple Type
E, J, K, L, N, R, S, T, U
Measurement Functions
Hertz, mV, Ohms, V
Powered By
(4) AA Batteries
Frequency Source Range
1 to 10 kHz
Resistance Measurement - Maximum
3,200 ohm
Intrinsic Safety
Not Specified Intrinsically Safe
Source Resistance - Minimum
1,500 ohm
Parameters Measured
DC Voltage, Frequency, Resistance, RTD, TC
Frequency Measurement - Maximum
10 kHz
Loop Current - Maximum
22 mA
Source Voltage - Maximum
100 mV
Battery Chemistry
Alkaline
Number of Batteries Required
4
Communication Protocol
Not Applicable
Source Frequency - Maximum
10 kHz
Source Current - Maximum
24 mA
Thermocouple Temperature - Maximum
2,498 Degrees F
Includes Batteries
Batteries Included
Voltage Measurement - Minimum
-10 mV
Source Voltage - Minimum
-10 mV
Current Measurement - Minimum
0 mA
Current Measurement - Maximum
24 mA
RTD Temperature - Minimum
-328 Degrees F
CAT Safety Rating
Not Applicable
Source Current - Minimum
0 mA
Calibration Certificate Type
NIST
Source Frequency - Minimum
1 kHz
Digital Display Screen Type
LCD with Backlight
Source Resistance - Maximum
3,200 ohm
Resistance Measurement - Minimum
1,500 ohm
Parameters Sourced
AC Voltage, DC Voltage, Frequency, Resistance
Thermocouple Temperature - Minimum
328 Degrees F
Frequency Measurement - Minimum
1 kHz
Country of Origin (subject to change)
Malaysia
