Enclosure NEMA Rating
No Enclosure
Auxiliary Contact Form
1NO
Frame / Series / Class / Code
Series Freedom, Code A, Frame 180mm
Horsepower
25 hp at 208 V, 30 hp at 240 V, 50 hp at 480/600 V
Product Length/Depth
5.94 in

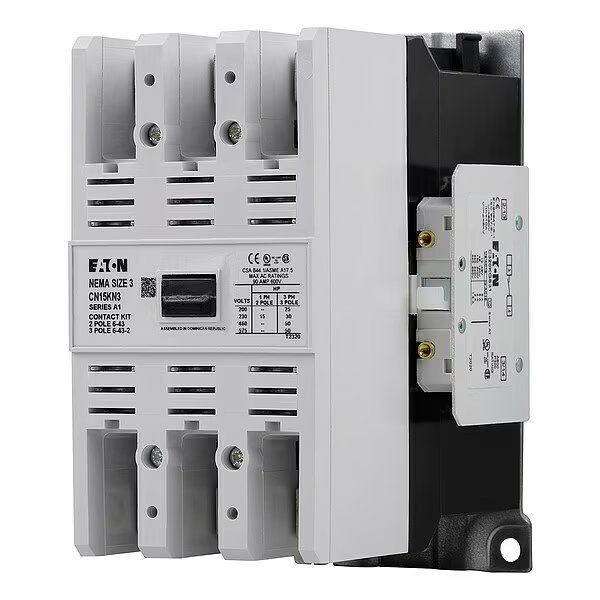

Product Name
Eaton Freedom NEMA motor control contactor
Nema Frame Size
NEMA Size 3
Mounting Hole Distance - Width
3 in
Reversing Capability
Non-Reversing
Includes Auxiliary Contacts
Yes
Number of Auxillary Contacts
1
NEMA Enclosure Rating
No Enclosure
NEMA Enclosure Material
Not Applicable
Horsepower @ Three Phase - 240V AC
25 hp
Horsepower @ Three Phase - 600V AC
50 hp
Mechanical Operating Durability
6,000,000
Maximum Voltage Rating
600V AC
Electrical Operating Durability
1,700,000 (AC-3), 60,000 (AC-4)
Full Load Current - Inductive
90 A
Horsepower @ Three Phase - 480V AC
50 hp
Minimum Operating Temperature
-4 Degrees F
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 208V AC
25 hp
Resistance Properties
Impact Resistant, Temperature Resistant
Mounting Hole Distance - Height
6.63 in
Maximum Operating Temperature
149 Degrees F
Mounting Hole Diameter
0.25 in
Terminal Connection Type
Screw Terminals
Mounting Postion
Horizontal, Vertical
Country of Origin (subject to change)
Dominican Republic
