| Property | Value |
|---|---|
| Promotion Restriction | Not eligible for promotion |
| Item | Handheld Oscilloscope |
| Bandwidth (MHz) | 500 MHz |
| Channels | 4 |
| Display | 153 mm Full Color LCD with Fast Update Rate |
| FFT Analysis | Frequency Spectrum Using FFT Analysis |
| Safety Rating | CAT III 1000V / CAT IV 600V |
| True RMS | Yes |
| Features | Advanced Automatic Measurements, Power (VPWM, VA, W, PF) and Time (mAs, V/s, w/s), Connect-and-View(TM) Continuous Auto-Trigger, Single Shot, Pulse Width and Video Triggering, IP-51 Rated for Dust and Drip Proof to Withstand Harsh Environments, TrendPlot, Trend Measurement Readings for up to 22 days |
| Manufacturers Warranty Length | 1 yr (Battery and Accessories), 3 yr (Main Instrument) |
| Battery Type | Li-Ion |
| Persistence | Digital Persistence Off/Short/Medium/Long/Infinite and Envelope Mode |
| Glitch Capture | 8 ns |
| Sampling Rate | 125 MS/s |
| Waveform / Measurement Stored | Measurement Data is Initially Stored in RAM, which is Maintained by the Main Battery with a 30 Seconds Back-up when Battery is Exchanged |
| Includes | (4) TRM50 Cable Terminators, (4) VPS410-II Probes, AC Power Adapter, Carrying Case, DWA-131 Wi-Fi Dongle, Hand Strap, Hanging Strap, Power Cord, USB Cable |
| Interface | USB |
| Triggering Mode | Auto |
| Product Type | Scope-Meter Test Tool |
| Battery Life | 7 hr |
| Real Time Clock | Yes |
| Input Sensitivity | 2 mV to 100 V/div |
| AC Magnitude Calculation | True RMS |
| DC Current Measurement - Maximum | Not Applicable |
| Calibration Certificate Type | Not Certified |
| Includes Batteries | Batteries Included |
| Standards | EN 61010-1, IEC 61010-2-030: CAT IV 600V/CAT III 1000V |
| Time Base - Minimum | 1 nsec/div |
| Channel Source Isolation | Fully Isolated |
| Battery Run Time | 7 hr |
| AC Voltage Measurement - Maximum | 1,100 V |
| Number of Channels | 4 |
| Digital Display Screen Type | LCD |
| Battery Chemistry | Lithium Ion |
| Basic AC Voltage Accuracy | +/-(1.50% +10 Counts) |
| Display Screen Length | 5.2 in |
| Capacitance Measurement - Maximum | Not Applicable |
| DC Current Measurement - Minimum | Not Applicable |
| DC Voltage Measurement - Maximum | Not Applicable |
| IP Rating | IP51 |
| CAT Safety Rating | CAT III 1000V, CAT IV 600V |
| Input Sensitivity - Maximum | 100 V/div |
| Basic DC Voltage Accuracy | +/-(1.50% +6 Counts) |
| Display Screen Width | 3.5 in |
| AC Current Measurement - Minimum | Not Applicable |
| Capacitance Measurement - Minimum | Not Applicable |
| Time Base - Maximum | 4 sec/div |
| Body Style | Handheld |
| Memory Depth | 30,000 Data Points Per Channel |
| AC Voltage Measurement Resolution | 100 mV |
| AC Current Measurement - Maximum | Not Applicable |
| Bandwidth | 500 MHz |
| Input Sensitivity - Minimum | 100 V/div |
| AC Voltage Measurement - Minimum | 500 mV |
| DC Voltage Measurement - Minimum | Not Applicable |
| Power Source | Battery |
| Country of Origin (subject to change) | Romania |
| Package Quantity | 1 |

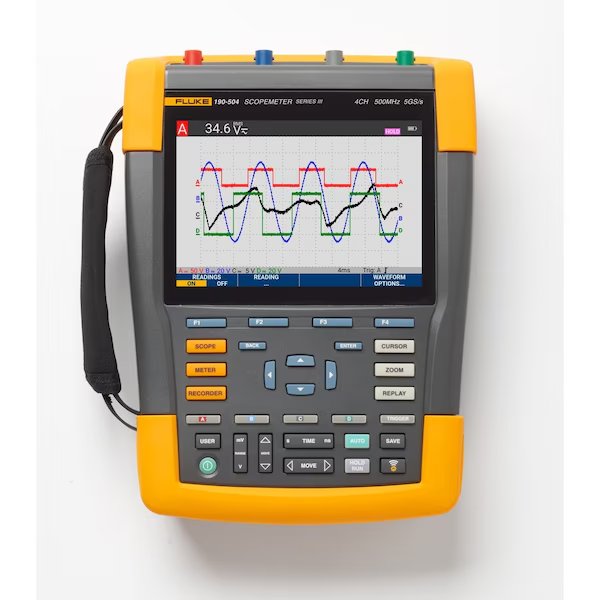

Oscilloscope, 4 Channel, 153mm LCD Display, Fluke, Mfr#: FLUKE-190-504/FPC
$9031.99
Free shipping will be applied on orders over $50
Handheld Oscilloscope, Bandwidth (MHz) 500 MHz, 4 Channels, 153 mm Full Color LCD with Fast Update Rate Display, True RMS Yes, Sampling Rate 125 MS/s, Measurement Data is Initially Stored in RAM, which is Maintained by the Main Battery with a 30 Seconds Back-up when Battery is Exchanged Waveform / Measurement Stored, FFT Analysis Frequency Spectrum Using FFT Analysis, Real Time Clock Yes, Auto Triggering Mode, Input Sensitivity 2 mV to 100 V/div
9999 in stock
