| Property | Value |
|---|---|
| Item - Relay | IEC Style Overload Relay |
| Item | Overload Relay |
| Current Range | 14.0 to 20.0A |
| Use With - Contactors and Starters | Mfr. Series 3RT202 Contactors |
| Overload Relay Current Range | 14.0 to 20.0A |
| NEMA Size | Not Applicable |
| Width | 1.77 |
| Trip Class - Overload | 10 |
| Number of Poles | 3 |
| Frame / Series / Class / Code | S0 |
| Reset Type - Relay | Auto, Manual |
| Height | 3.35 |
| Sensing Method | Thermal |
| Depth | 3.35 |
| Body Depth - Relay | 3.35 in |
| Overall Height - Relay | 3.35 in |
| Trip Class | 10 |
| Separate Mounting | Yes, Additional Items Needed |
| Body Width - Relay | 1.77 in |
| For Use With | 3RT202 Contactors |
| Body Height - Relay | 3.35 in |
| Standards | REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation |
| Features | Manual and Auto Reset |
| Mounting | Contactor mounting |
| Starter Type | IEC |
| Type | thermal overload relay |
| Size | 0.045 m / 0.085 m / 0.085 m |
| Contact Rating | B600 / R300 |
| Operating Temperature | -40ΓΒ°C to 70ΓΒ°C |
| Contact configuration | 1 / 0 / 1 |
| Insulation | IP20 |
| Full Load Current Range | 20 A / 20 A |
| Trip type | CLASS 10 |
| Environmental Conditions | -55 |
| Mounting Style | Direct To Contactor |
| Includes Thermal Units | Yes |
| Frame Size | S0 |
| Maximum Overload Relay Current Setting | 20 A |
| Maximum Voltage Rating | 690V AC |
| Overload Protection Type | Thermal |
| Compatible with Series | SIRIUS |
| Body Height | 5.98 in |
| Body Width | 1.77 in |
| Body Depth | 2.63 in |
| Phase | Three |
| Terminal Connection Type | Screw Terminals |
| Reset Type | Auto, Manual |
| Number of Required Thermals | 3 |
| Includes Mounting Hardware | Not Applicable |
| Minimum Overload Relay Current Setting | 14 A |
| Minimum Operating Temperature | -40 Degrees F |
| Overall Height | 5.98 in |
| Relay Style | IEC |
| IP Rating | IP20 |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Operating Temperature | 158 Degrees F |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |

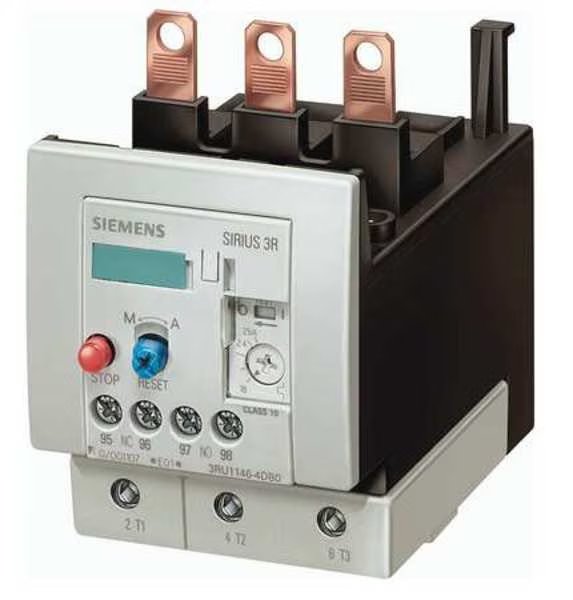

Ovrload Relay, 14 to 20A, 3P, Class 10,690V, Siemens, Mfr#: 3RU21264BB0
$85.49
Free shipping will be applied on orders over $50
Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 20 A, Minimum Overload Relay Current Setting 14 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals 3, Reset Type Auto, Manual, Includes Thermal Units Yes, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S0, Relay Style IEC, Overload Protection Type Thermal, Phase Three
9999 in stock
