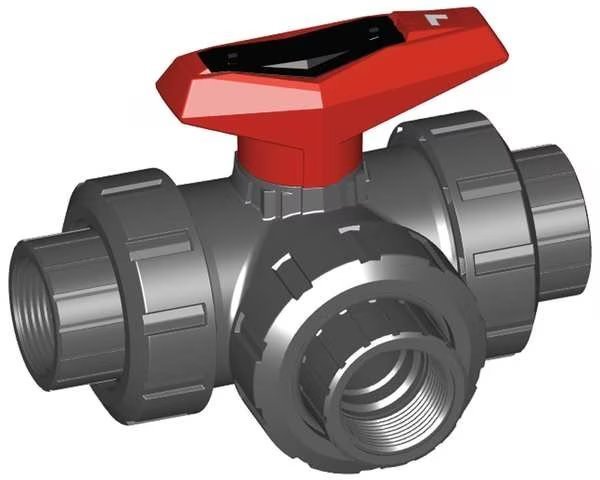

Body Style
3-Way True Union
Standards
ASTM 1970-01, ASTM D1784, FDA, USP Class VI
Ball Valve Basic Body Material
Plastic
Handle Material
Glass Filled Polypropylene
Features
Integrated Stainless Steel Mounting Inserts
Max. Steam Pressure
0 psi WSP
Temp. Range
32 Degrees to 140 Degrees F
Ball Valve Product Group
Manual
Connection Type
FNPT x FNPT x FNPT
Special Features
Actuator Compatible
General Connection Type
Female NPT
Sub-Category
Synthetic Ball Valves
Material of Construction
PVC
Operating Temperature - Maximum
140 Degrees F
Vented Ball Valve
Non-Vented
Outlet Connection Type - Side 1
NPT
Color - Valve Handle
Orange
Valve Construction
Two-Piece
Inlet Connection Entry
Side
Outlet Connection Size - Side 1
3/4 in
Maximum Pressure - Combustible Gas
Not Rated
Average Surface Roughness (Ra)
Not Applicable
Outlet Connection Gender - Side 1
Female
Inlet Connection Size
3/4 in
Coefficient of Volume (Cv)
2.1
3-A Standard Compliance
Not Rated
Inlet Connection Gender
Female
Included Mounting
Actuator Mounting Pad
Operating Temperature - Minimum
32 Degrees F
Outlet Connection Type - Side 2
NPT
ANSI Flange Class
Not Applicable
Vacuum Service Rating
Not Applicable
Outlet Connection Size - Side 2
3/4 in
Outlet Connection Gender - Side 2
Female
Pipe Schedule Compatibility
Not Applicable
Maximum Pressure - Operating
145 psi
Maximum Pressure - Steam
Not Rated
Country of Origin (subject to change)
Switzerland
