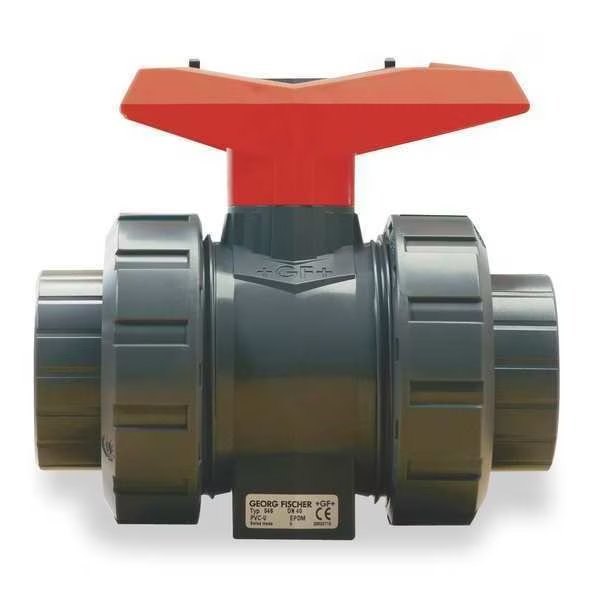

Body Style
Inline True Union
Max. Steam Pressure
0 psi WSP
Ball Valve Product Group
Manual
Max. Pressure
232 psi @ 73 Degrees F
Connection Type
Socket/FNPT x Socket/FNPT
Standards
ASTM 1970-01, ASTM D1784, USP Class VI, FDA, NSF 61
Ball Valve Basic Body Material
Plastic
Temp. Range
32 Degrees to 140 Degrees F
Type
Two Piece, True Union
Connection
Socket/Threaded
Sub-Category
Synthetic Ball Valves
Material of Construction
PVC
Valve Construction
Two-Piece
Maximum Pressure - Steam
Not Applicable
Vented Ball Valve
Not Applicable
Pipe Schedule Compatibility
Not Applicable
Connection Gender - Side 1
Female
Connection Size - Side 1
1/2 in
ANSI Flange Class
Not Applicable
For Media
Corrosive Chemicals, Water
Color - Valve Handle
Orange
Connection Size - Side 2
1/2 in
Operating Temperature - Minimum
32 Degrees F
Average Surface Roughness (Ra)
Not Applicable
3-A Standard Compliance
Not Rated
Operating Temperature - Maximum
140 Degrees F
Handle - Locking
Not Applicable
Included Mounting
Not Applicable
Vacuum Service Rating
Not Applicable
Maximum Pressure - Operating
16 bar
Coefficient of Volume (Cv)
15
Connection Type - Side 2
NPT
Maximum Pressure - Combustible Gas
Not Rated
Connection Type - Side 1
NPT
NSF Certifications for Food and Drinking Water
NSF 61
Connection Gender - Side 2
Female
Country of Origin (subject to change)
Italy
