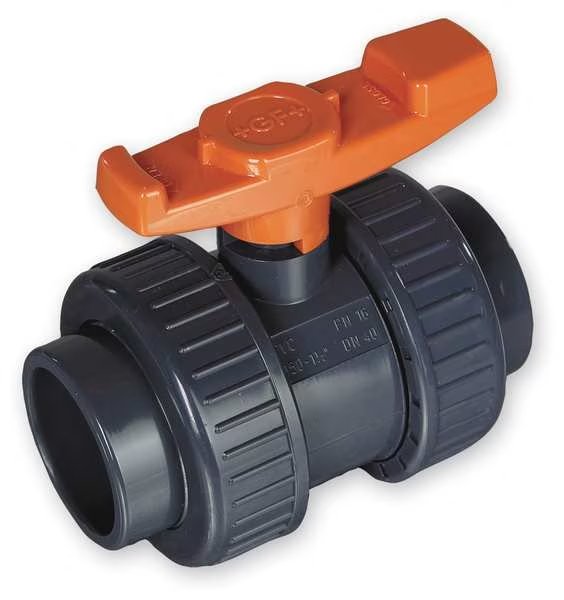

Body Style
Inline True Union
Ball Valve Basic Body Material
Plastic
Connection Type
Socket/FNPT x Socket/FNPT
Temp. Range
32 Degrees to 140 Degrees F
Standards
ASTM 1970-01, ASTM D1784, FDA, NSF 61, USP Class VI
Ball Valve Product Group
Manual
Max. Steam Pressure
0 psi WSP
Connection
Socket/Threaded
Type
Two Piece, True Union
General Connection Type
Socket
Material of Construction
PVC
Sub-Category
Synthetic Ball Valves
Average Surface Roughness (Ra)
Not Applicable
Handle - Locking
Not Applicable
Operating Temperature - Maximum
140 Degrees F
For Media
Corrosive Chemicals, Water
Coefficient of Volume (Cv)
21
Valve Construction
Two-Piece
Connection Gender - Side 2
Female
Maximum Pressure - Operating
16 bar
Connection Size - Side 2
3/4 in
NSF Certifications for Food and Drinking Water
NSF 61
Vacuum Service Rating
Not Applicable
Vented Ball Valve
Not Applicable
Connection Size - Side 1
3/4 in
ANSI Flange Class
Not Applicable
Maximum Pressure - Steam
Not Applicable
Maximum Pressure - Combustible Gas
Not Rated
Connection Gender - Side 1
Female
Connection Type - Side 2
NPT
Color - Valve Handle
Orange
Connection Type - Side 1
NPT
Included Mounting
Not Applicable
Operating Temperature - Minimum
32 Degrees F
Pipe Schedule Compatibility
Not Applicable
3-A Standard Compliance
Not Rated
Country of Origin (subject to change)
Italy
