| Property | Value |
|---|---|
| Item | Photocontrol |
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Mounting | 1/2 in Male Pipe Thread |
| Voltage | 120V AC |
| Max. Wattage | 1,800 |
| Max. Incandescent Amps | 15 A |
| Max. Ballast Amps | 8.3 A |
| Foot Candles On | 1.0 to 5.0 |
| Foot Candles Off | 3 to 15 |
| Color | White/Gray |
| Temp. Range | -40 Degrees to 158 Degrees F |
| Housing Material | Polycarbonate |
| Description/Special Features | Built-in Delay to Prevent False Cycling |
| Depth | 1 9/16 in |
| Setting | Dusk to Dawn |
| Standards | CSA, UL |
| Contact Form | SPST |
| Width | 1 9/16 in |
| Enclosure Type | Raintight |
| Length | 5 1/2 in |
| Manufacturers Warranty Length | 2 yr |
| Length (Straight Wireway) | 5 1/2 in |
| Photocontrol Switch Type | Mechanical Bimetal |
| Photocontrol Style | Stem and Swivel Mount |
| Other Certifications | Title 20 |
| Product Height | 5 in; 139.7 mm |
| Operating Temperature Min | -40 ΓΒ°C |
| Product Width | 1 9/16 in; 39.7 mm |
| Fail Mode | ON |
| Magnetic Ballast Load Ratings Ranges | 8.3 A, 1000 VA |
| Cover Color | Gray |
| Expected Lifetime Operations | 3650 |
| UL Certification | UL |
| Photocontrol Type | Thermal |
| Photocontrol Photocell Type | Cadmium Sulfide |
| Sensor Time Delay | 30 sec to 90 sec |
| Input Voltage Ranges | 120 VAC, 50/60 Hz |
| Solutions | Comfort u0026 Convenience; Energy Savings; Landscape; Lighting Control; Security; Panel Integrators |
| Wiring Option | Wire leads |
| Wire Lead Length | 6 in; 152 mm |
| Wire Size Max | #18 AWG |
| Product Depth | 1 9/16 in; 39.7 mm |
| Expected Lifetime Years | 5 |
| Magnetic Ballast Load Ratings | 8.3 A, 1000 VA |
| Applications | Outdoor Lighting Control |
| Market | Commercial; Residential; Industrial |
| Packaging Applications | Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Street Lighting; Pedestrian Pathway Lighting |
| Application Compatibilities | HID; Fluorescent; Incandescent |
| Activation On | 1 to 5 fc |
| CSA Certification | cCSAus |
| Tungsten Load Ratings | 15 A, 1800 W |
| Activation Off | 3 to 15 fc |
| Operating Temperature Max | 158 ΓΒ°C |
| Usage Environments | Outdoor |
| Photocontrol Sensor Location | Side |
| Photocell Type | Cadmium Sulfide |
| Operating Temperature Min (Β°F) | -40 |
| Product Height (in) | 5 |
| Magnetic Ballast Range(s) | 8.3 A, 1000 VA |
| Magnetic Ballast (NO) | 8.3 A, 1000 VA |
| Photo Control Switch Type | Mechanical Bimetal |
| Product Width (in) | 1.5625 |
| Operating Temperature Max (Β°F) | 158 |
| Product Depth (in) | 1.5625 |
| Input Voltage Range(s) | 120 VAC, 50/60 Hz |
| Features | Mechanical bimetal switch with Cadmium Sulfide photocell; Delay feature prevents unwanted OFF switching; High strength, UV resistant plastic housing; Swivel with 1ΓΒ’Γ’β¬ΕΎ2 |
| Operating Temperature Max (ΓΒ°F) | 158 |
| Operating Temperature Min (ΓΒ°F) | -40 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

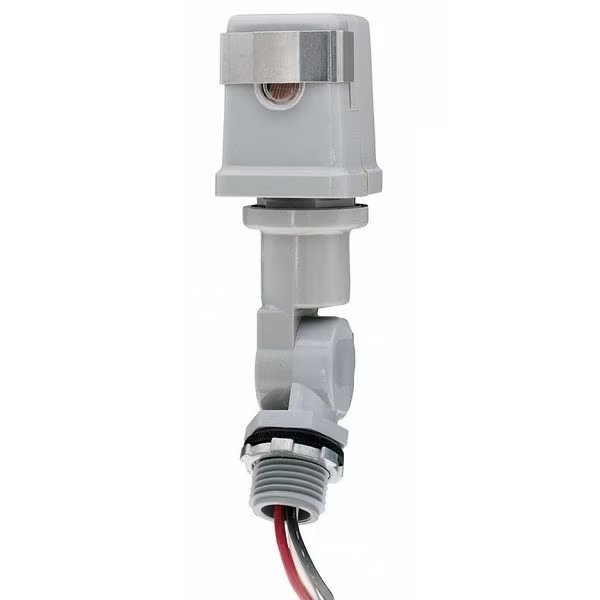

Photocontrol, 120V AC, 1800 W Max Watt, 15 A Incandescent Amps, 8.3 A Max. Ballast Amps, SPST, Intermatic, Mfr#: K4221C
$16.57
Free shipping will be applied on orders over $50
Photocontrol, Mounting 1/2 in Male Pipe Thread, Voltage 120V AC, Max. Wattage 1,800, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color White/Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 5 1/2 in, Width 1 9/16 in, Depth 1 9/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards CSA, UL
9999 in stock
Subtotal:
$16.57
