Item

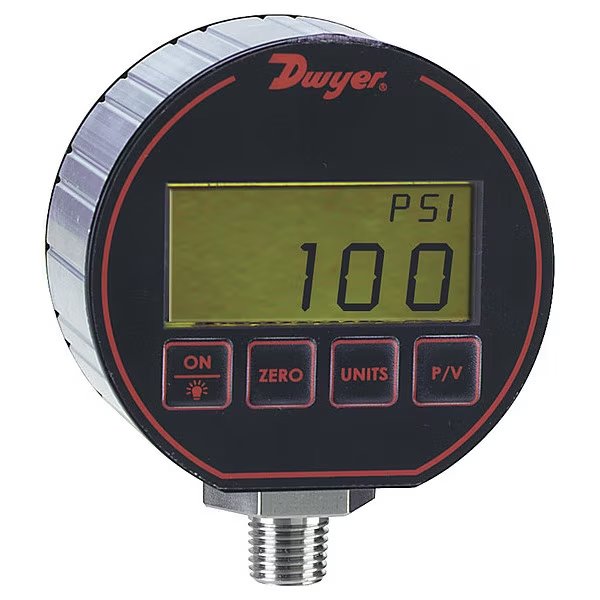

Digital Process Pressure Gauge
Connection Location
Bottom
Includes
Alkaline Batteries
Application
Process Applications
Gauge Primary Range Values
0 to 200
Gauge Primary Range Units
psi
Gauge Connection Type
MNPT
Gauge Connection Size
1/4 in
Resolution
Dependent on Range
Battery Type
(2) AAA Batteries
Pressure Range
0 to 200 psi
Manufacturers Warranty Length
1 yr
Calibration Certificate
No
Features
Automatic Shutoff, Low Battery Indicator, Zero Adjustment
Powered By
(2) AAA Batteries
Gauge Connection Location
Bottom
Standards
CE Approved, RoHS, Russian GOST
Socket Material
Stainless Steel
Gauge Operating Temp. Range
0 Degrees to 130 Degrees F
Number of Display Digits
4
Process Connection
1/4 in NPT Male
Gauge Case Material
Aluminum
Digital Gauge Display Units
bar, in Hg, kg/sq cm, kPa, oz/sq in, psi
Gauge Nominal Dial Size
3 in
Digital Gauge Accuracy
+/-0.25% Full Scale
Display Units
bar, ft wc, in Hg, in wc, kg/sq cm, kPa, oz/sq in, psi
Process Temperature Range
0 Degrees to 130 Degrees F
Includes Calibration Certificate
No
Includes Mounting Hardware
No
Pressure Gauge Type
Process Pressure Gauge
Process Connection Type
NPT
Primary Display Range
0 to 200
Process Connection Gender
Male
IP/NEMA Rating
IP66, NEMA 4, NEMA 4X
Process Connection Location
Bottom
Keypad Material
Polycarbonate
Ambient Operating Temperature Range
0 Degrees to 130 Degrees F
Sensor Material
316L Stainless Steel
Display Range
0 to 13.79 bar, 0 to 1379 kPa, 0 to 14.06 kg/cm², 0 to 200 psi, 0 to 3200 on/in², 0 to 407.2 in Hg, 0 to 461.4 ft w.c., 0 to 5536 in w.c.
Compatible Process Media
Compatible Liquids and Combustible Gases
Manufacturer Warranty Length
1 yr
Process Connection Size
1/4 in
Pressure Range Type
Pressure
Hazardous Location Rating
Class I, Division 1, Groups A, B, C, D
Gauge Wetted Parts
Stainless Steel
Display Screen Width
0.234 in
Display Screen Height
0.425 in
Country of Origin (subject to change)
United States
