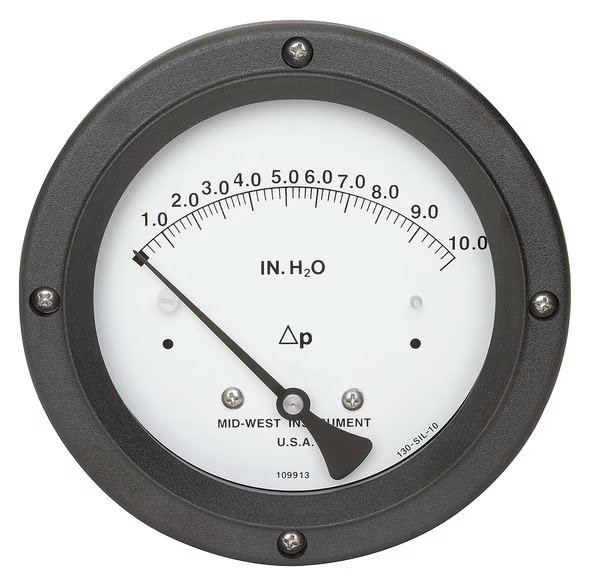

Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Nominal Dial Size
4 1/2 in
Basic Gauge Case Material
Metal
Basic Gauge Wetted Parts
Neoprene
Differential Gauge Connection Type
FNPT
Differential Gauge Connection Size
1/4 in
Gauge Connection Location
Back
Differential Pressure Range Units
in wc
Differential Pressure Range Value
0 to 10
Diaphragm Material
Neoprene
Rated Total Pressure
500 psi
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Manufacturers Warranty Length
5 yr
Gauge Primary Range Smallest Graduation
0.2
Differential Pressure Range
0 to 10 in wc
Body Material
316 Stainless Steel
Scale Type
Ammonia Pressure
Standards
ASME, CSA, EN, NACE, NEMA, SEA, UL
Item
Differential Pressure Gauge
Bolt Circle Diameter
5.63 in
Process Connection Type
NPT
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Process Temperature Range
-40 Degrees to 200 Degrees F
Includes Calibration Certificate
No
Includes Mounting Hardware
No
Gauge Case Material
Plastic
Primary Scale Minor Graduations
0.2
Application - Max Pressure
For Medium Operating Pressure
Hazardous Location Rating
Not Rated
Brand and Series
MIDWEST INSTRUMENT 130
Accuracy Grade
ASME B40.1 Grade B
Nominal Dial Size
4 1/2 in
Pressure Range
0 to 10 in wc
Process Connection Gender
Female
Housing Material
316 Stainless Steel
Manufacturer Warranty Length
5 yr
Process Connection Location
Back
Application
Highly Corrosive, Filtration Monitoring, Flow Measurement, Selective Catalytic Reduction (SCR), Vacuum Applications, Water Purification or Irrigation
Pressure Gauge Type
Differential Pressure Gauge
Process Connection Size
1/4 in
Case Construction
Hermetically Sealed
Maximum Working Static Pressure
500 psig
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Max Pressure Application
For Medium Operating Pressure
Process Connection
1/4 in NPT Female
Country of Origin (subject to change)
United States
