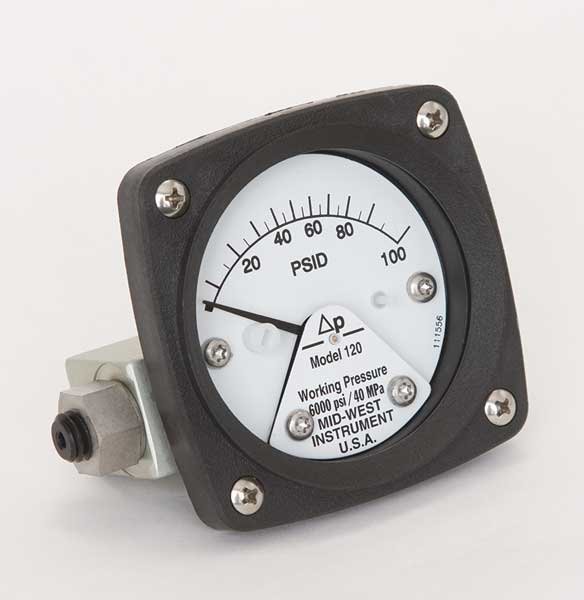

Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Nominal Dial Size
2 1/2 in
Basic Gauge Case Material
Metal
Basic Gauge Wetted Parts
Stainless Steel / Buna-N
Differential Gauge Connection Type
FNPT
Differential Gauge Connection Size
1/4 in
Gauge Connection Location
Back
Differential Pressure Range Units
psi
Differential Pressure Range Value
0 to 100
Differential Pressure Range
0 to 100 psi
Piston Material
Stainless Steel
Gauge Primary Range Smallest Graduation
5
Rated Total Pressure
3,000 psi
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Dial Material
Engineered Plastic
Manufacturers Warranty Length
5 yr
Item
Differential Pressure Gauge
Pressure Range
0 to 100 psid
Gauge Case Material
Plastic
Process Connection Type
NPT
Bolt Circle Diameter
3.5 in
Maximum Working Static Pressure
3,000 psig
Process Connection
1/4 in NPT Female
Includes Mounting Hardware
No
Process Connection Size
1/4 in
Brand and Series
MIDWEST INSTRUMENT 120
Pressure Gauge Type
Differential Pressure Gauge
Bezel Gasket Material
Buna-N
Application - Max Pressure
For High Operating Pressure
Max Pressure Application
For High Operating Pressure
Process Connection Gender
Female
Application
Hydraulics, Filtration Monitoring, Pressure Detection, Pumps, Refrigeration, Valves
Hazardous Location Rating
Not Rated
Primary Scale Minor Graduations
5
Includes Calibration Certificate
No
Process Connection Location
Back
Manufacturer Warranty Length
5 yr
Accuracy Grade
ASME B40.1 Grade B
Case Construction
Glass Reinforced
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Movement Material
Stainless Steel
IP/NEMA Rating
IP65, NEMA 4X
Process Temperature Range
-40 Degrees to 200 Degrees F
Nominal Dial Size
2 1/2 in
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Country of Origin (subject to change)
United States
