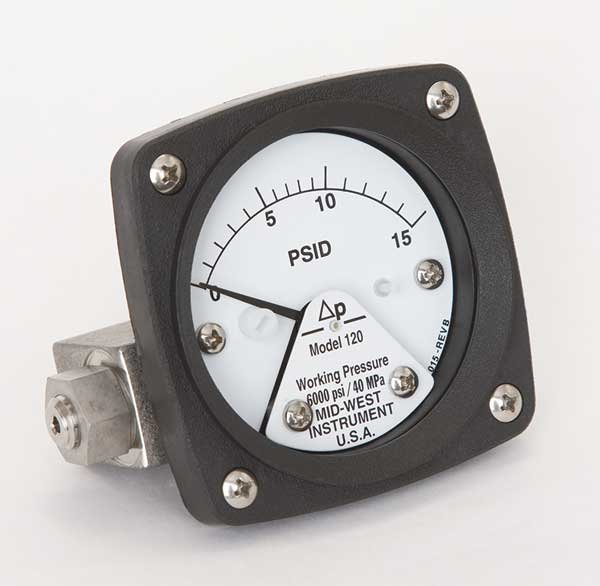

Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Nominal Dial Size
2 1/2 in
Basic Gauge Case Material
Metal
Basic Gauge Wetted Parts
Stainless Steel / Buna-N
Differential Gauge Connection Type
FNPT
Differential Gauge Connection Size
1/4 in
Gauge Connection Location
Back
Differential Pressure Range Units
psi
Differential Pressure Range Value
0 to 15
Item
Differential Pressure Gauge
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Differential Pressure Range
0 to 15 psi
Dial Material
Engineered Plastic
Gauge Primary Range Smallest Graduation
1
Rated Total Pressure
3,000 psi
Piston Material
Stainless Steel
Manufacturers Warranty Length
5 yr
IP/NEMA Rating
IP65, NEMA 4X
Process Connection Type
NPT
Gauge Case Material
Plastic
Movement Material
Stainless Steel
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Process Connection Location
Back
Bezel Gasket Material
Buna-N
Process Connection Size
1/4 in
Accuracy Grade
ASME B40.1 Grade B
Includes Calibration Certificate
No
Nominal Dial Size
2 1/2 in
Process Temperature Range
-40 Degrees to 200 Degrees F
Primary Scale Minor Graduations
1
Pressure Gauge Type
Differential Pressure Gauge
Process Connection
1/4 in NPT Female
Process Connection Gender
Female
Manufacturer Warranty Length
5 yr
Bolt Circle Diameter
3.5 in
Case Construction
Glass Reinforced
Maximum Working Static Pressure
3,000 psig
Max Pressure Application
For High Operating Pressure
Application
Hydraulics, Filtration Monitoring, Pressure Detection, Pumps, Refrigeration, Valves
Brand and Series
MIDWEST INSTRUMENT 120
Application - Max Pressure
For High Operating Pressure
Hazardous Location Rating
Not Rated
Pressure Range
0 to 15 psid
Includes Mounting Hardware
No
Country of Origin (subject to change)
United States
