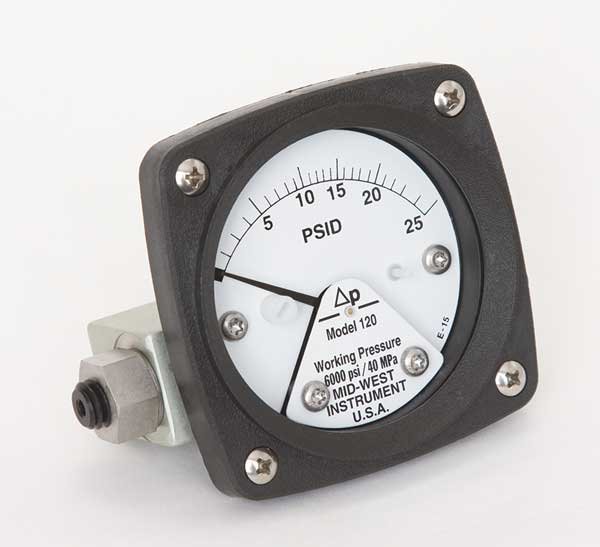

Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Nominal Dial Size
2 1/2 in
Basic Gauge Case Material
Metal
Basic Gauge Wetted Parts
Stainless Steel / Buna-N
Differential Gauge Connection Type
FNPT
Differential Gauge Connection Size
1/4 in
Gauge Connection Location
Back
Differential Pressure Range Units
psi
Differential Pressure Range Value
0 to 25
Differential Pressure Range
0 to 25 psi
Gauge Primary Range Smallest Graduation
1
Item
Differential Pressure Gauge
Rated Total Pressure
3,000 psi
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Piston Material
Stainless Steel
Manufacturers Warranty Length
5 yr
Dial Material
Engineered Plastic
Case Construction
Glass Reinforced
Max Pressure Application
For High Operating Pressure
Nominal Dial Size
2 1/2 in
Application - Max Pressure
For High Operating Pressure
Process Connection Gender
Female
Process Temperature Range
-40 Degrees to 200 Degrees F
Gauge Case Material
Plastic
Primary Scale Minor Graduations
1
Bezel Gasket Material
Buna-N
Process Connection Type
NPT
Includes Calibration Certificate
No
Process Connection
1/4 in NPT Female
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Brand and Series
MIDWEST INSTRUMENT 120
Process Connection Size
1/4 in
Includes Mounting Hardware
No
Pressure Range
0 to 25 psid
Accuracy Grade
ASME B40.1 Grade B
Maximum Working Static Pressure
3,000 psig
Pressure Gauge Type
Differential Pressure Gauge
Application
Hydraulics, Filtration Monitoring, Pressure Detection, Pumps, Refrigeration, Valves
IP/NEMA Rating
IP65, NEMA 4X
Bolt Circle Diameter
3.5 in
Manufacturer Warranty Length
5 yr
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Hazardous Location Rating
Not Rated
Process Connection Location
Back
Movement Material
Stainless Steel
Country of Origin (subject to change)
United States
