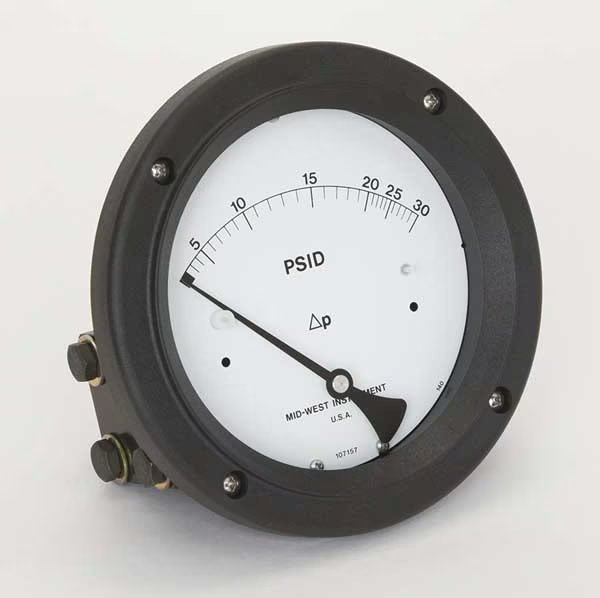

Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Nominal Dial Size
4 1/2 in
Basic Gauge Case Material
Metal
Basic Gauge Wetted Parts
Buna-N
Differential Gauge Connection Type
FNPT
Differential Gauge Connection Size
1/4 in
Gauge Connection Location
Back
Differential Pressure Range Units
psi
Differential Pressure Range Value
0 to 30
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE, UL
Gauge Primary Range Smallest Graduation
1
Rated Total Pressure
3,000 psi
Dial Material
Engineered Plastic
Manufacturers Warranty Length
5 yr
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Differential Pressure Range
0 to 30 psi
Item
Differential Pressure Gauge
Includes Mounting Hardware
No
Nominal Dial Size
4 1/2 in
Case Construction
Glass Reinforced
Brand and Series
MIDWEST INSTRUMENT 140
Maximum Working Static Pressure
3,000 psig
Process Connection
1/4 in NPT Female
Process Connection Type
NPT
Manufacturer Warranty Length
5 yr
Process Connection Gender
Female
Application - Max Pressure
For High Operating Pressure
Gauge Case Material
316 Stainless Steel, Aluminum
Application
Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
Movement Material
316 Stainless Steel
Process Connection Location
Back
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
IP/NEMA Rating
IP65, NEMA 4X
Bolt Circle Diameter
5.63 in
Max Pressure Application
For High Operating Pressure
Process Temperature Range
-40 Degrees to 200 Degrees F
Primary Scale Minor Graduations
1
Accuracy Grade
ASME B40.1 Grade B
Hazardous Location Rating
Not Rated
Includes Calibration Certificate
No
Pressure Range
0 to 30 psid
Bezel Gasket Material
Buna-N
Process Connection Size
1/4 in
Pressure Gauge Type
Differential Pressure Gauge
Country of Origin (subject to change)
United States
