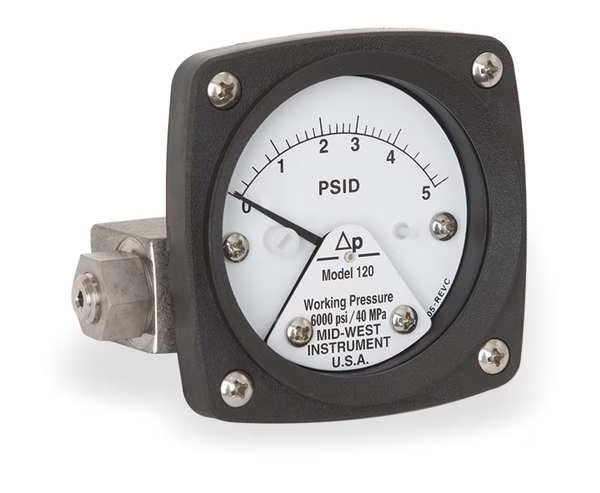

Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Nominal Dial Size
2 1/2 in
Basic Gauge Case Material
Metal
Basic Gauge Wetted Parts
Stainless Steel / Buna-N
Differential Gauge Connection Type
FNPT
Differential Gauge Connection Size
1/4 in
Gauge Connection Location
Back
Differential Pressure Range Units
psi
Differential Pressure Range Value
0 to 5
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Piston Material
Stainless Steel
Rated Total Pressure
3,000 psi
Dial Material
Engineered Plastic
Differential Pressure Range
0 to 5 psi
Gauge Primary Range Smallest Graduation
0.2
Item
Differential Pressure Gauge
Manufacturers Warranty Length
5 yr
Pressure Range
0 to 5 psid
Accuracy Grade
ASME B40.1 Grade B
Brand and Series
MIDWEST INSTRUMENT 120
Process Connection Size
1/4 in
Movement Material
Stainless Steel
Application
Hydraulics, Filtration Monitoring, Pressure Detection, Pumps, Refrigeration, Valves
Process Temperature Range
-40 Degrees to 200 Degrees F
Max Pressure Application
For High Operating Pressure
Case Construction
Glass Reinforced
Gauge Case Material
Plastic
Application - Max Pressure
For High Operating Pressure
Pressure Gauge Type
Differential Pressure Gauge
Bezel Gasket Material
Buna-N
Process Connection Location
Back
Primary Scale Minor Graduations
0.2
Process Connection
1/4 in NPT Female
Process Connection Type
NPT
IP/NEMA Rating
IP65, NEMA 4X
Nominal Dial Size
2 1/2 in
Includes Mounting Hardware
No
Maximum Working Static Pressure
3,000 psig
Process Connection Gender
Female
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Includes Calibration Certificate
No
Manufacturer Warranty Length
5 yr
Hazardous Location Rating
Not Rated
Bolt Circle Diameter
3.5 in
Country of Origin (subject to change)
United States
