Differential Pressure Gauge Type
Differential Pressure Indicator
Basic Gauge Case Material
Metal
Basic Gauge Wetted Parts
Buna-N
Differential Gauge Connection Type
FNPT
Differential Gauge Connection Size
1/4 in
Gauge Connection Location
Inline
Differential Pressure Range Units
psi
Differential Pressure Range Value
0 to 3.50
Item

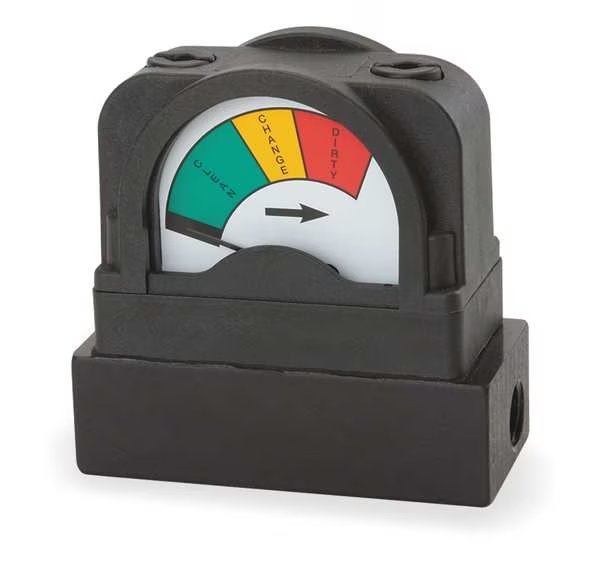

3-Color Differential Pressure Indicator
Rated Total Pressure
300 psi
Manufacturers Warranty Length
1 yr
Differential Pressure Range
0 to 3.50 psi
Body Material
Glass Filled Nylon
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Standards
Certified Quality System CSA B51-09 SAI GLOBAL, CSA Listed, UL Listed
Nominal Dial Size
3 1/4 in
Hazardous Location Rating
Not Rated
Housing Material
Glass-Filled Nylon
Pressure Range
0 to 3 psid
Process Connection
1/4 in NPT Female
Manufacturer Warranty Length
1 yr
Process Connection Location
End
Transition Point Range - Yellow
2.0 to 2.5 psid
Includes Mounting Hardware
No
Gauge Case Material
Glass Filled Nylon
Pointer Characteristics
Magnetic Piston and Follower Pointer
Pressure Gauge Type
Differential Filter Indicator
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Accuracy Grade
ASME B40.1 Grade D
Case Construction
Corrosion Resistant
Process Connection Type
NPT
Process Connection Size
1/4 in
Transition Point Range - Green
0 to 2.0 psid
Transition Point Range - Red
2.5 to 3.5 psid
Dial Color
Green-Yellow-Red
Accuracy Details
+/-5% (0-3.5 psid to 0-43 psid)
Process Temperature Range
-40 Degrees to 200 Degrees F
Process Connection Gender
Female
Includes Calibration Certificate
No
Maximum Working Static Pressure
300 psig
Transition Points
0 to 2.0 psid (Green) / 2.0 to 2.5 psid (Yellow) / 2.5 to 3.5 psid (Red)
Application
Filtration Monitoring, Line Loss, Valves
Country of Origin (subject to change)
United States
