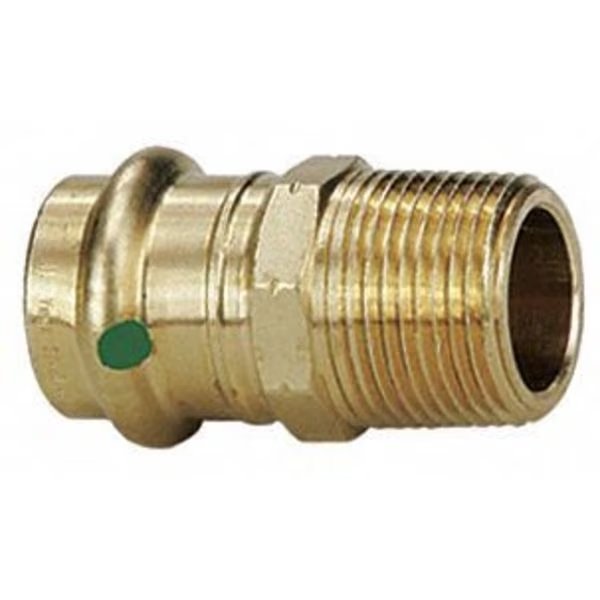

Tube Fitting Material
Bronze
Specific Fitting Shape
Straight Adapter
Fitting Connection Type
Press x Male Pipe Thread
Tube Size
1-1/2 in x 1-1/2 in
Pipe Size - Pipe Fitting
1-1/2 in x 1-1/2 in
Standards
ASTM B75, ASTM B88
Basic Pipe Fitting Material
Metal
Compliance
ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Temp. Range
0 Degrees to 250 Degrees F
Specific Pipe Fitting Shape
Adapter
Basic Pipe Fitting Shape
Adapter
Pipe Size (Fittings)
1-1/2
Pipe Fitting Connection Type
Press x Male Pipe Thread
Fitting Copper Tube Size
1 1/2 in
End Connection Type
Press, Threaded
Fitting Side B Connection Type
MNPT
Fitting Pipe Size
1 1/2 in
Fitting Side A Copper Tube Size
1 1/2 in
Connection Type
Press-Fit x MNPT
Maximum Operating Pressure
200 psi
Minimum Operating Temperature
0 Degrees F
Fitting Side B Pipe Size
1 1/2 in
Stop and Shape
Straight Adapter
Fitting Side A Connection Type
Press-Fit
Maximum Operating Temperature
250 Degrees F
Country of Origin (subject to change)
Germany
