Fitting Connection Type
Press x Female Pipe Thread
Pipe Size - Pipe Fitting
3/4
Standards
13D and 13R: Fire Sprinkler Applications, CRN: Canadian Registration Number, CSA International: Canadian Standards Association, FM: FM Global, IAPMO: Uniform Plumbing Code, ICC: International Plumbing Code, NFPA 13, NSF/ANSI 372: Drinking Water System Components - Lead Content, NSF/ANSI 61: Drinking Water System Components - Health Effects, PHCC: National Standard Plumbing Code, UL: Underwriters Laboratories
Tube Fitting Material
Bronze
Compliance
ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Temp. Range
0 Degrees to 250 Degrees F
Basic Pipe Fitting Material
Metal
Basic Pipe Fitting Shape
Union
Specific Pipe Fitting Shape

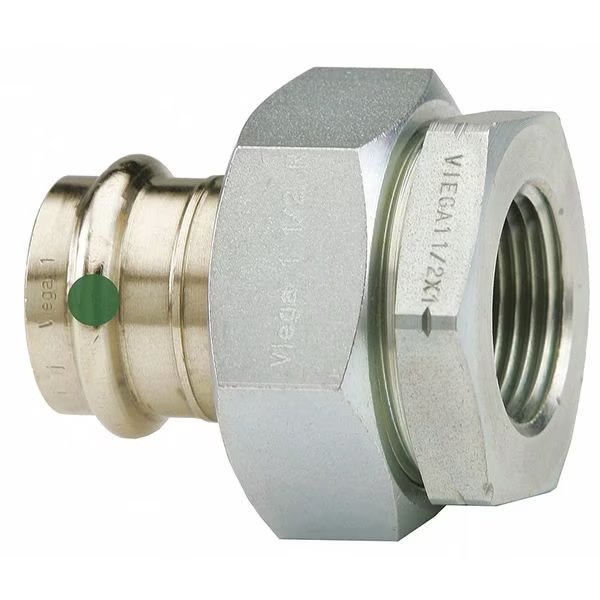

Dielectric Union
Specific Fitting Shape
Dielectric Union
Pipe Fitting Connection Type
Press x Female Pipe Thread
Fitting Side A Connection Type
Press-Fit
Maximum Operating Pressure
200 psi
Minimum Operating Temperature
0 Degrees F
Fitting Side B Connection Type
FNPT
Maximum Operating Temperature
250 Degrees F
Fitting Side A Copper Tube Size
3/4 in
Fitting Side B Pipe Size
3/4 in
Products By Industry
General Approach
Country of Origin (subject to change)
Germany
