| Item | Radial Ball Bearing |
| Single Row/Double Row | Single Row |
| Bearing Type | Double Sealed |
| Cage Material | Steel |
| Seal/Shield Type | Double Sealed |
| Bore Dia. | 40 mm |
| Outside Dia. | 90 mm |
| Width | 23 mm |
| Bearing Material | Steel |
| Dynamic Load Capacity | 11,400 lb |
| Seal Material | Rubber |
| Static Load Capacity | 5,850 lb |
| Bore Tolerance | +0/-.012mm |
| Temp. Range | -60 Degrees to 200 Degrees F |
| Outside Dia. Tolerance | +0/-.015mm |
| Lubrication | Chevron SRI 2 |
| ABEC Tolerance | 1 |
| Industry Number | 308PP |
| Max. RPM | 3,846 RPM |
| Ball Material | Alloy Steel |
| Dynamic Radial Load Capacity | 11,400 lbf |
| Static Radial Load Capacity | 5,850 lbf |
| Includes Retaining Ring | No |
| Seal Type | Contact |
| Outer Ring Width | 23 mm |
| Bore Diameter | 40 mm |
| Retaining Ring Groove | No |
| Minimum Temperature | -60 Degrees F |
| Ring Material | Alloy Steel |
| Retaining Ring Diameter | Not Applicable |
| ABEC Rating | 1 |
| Bearing Industry Number | 6308 |
| Closure | Double Sealed |
| Maximum Speed | 3,846 RPM |
| System of Measurement | Metric |
| Lubricant Material | SRI 2 |
| Retaining Ring Thickness | Not Applicable |
| Maximum Temperature | 200 Degrees F |
| Number of Rows | One |
| Bore Diameter Tolerance | +0/-0.012 mm |
| Closure & Seal Type | Double Sealed - Contact Seal |
| Outside Diameter | 90 mm |
| Outside Diameter Tolerance | +0/-0.015 mm |
| Maximum Axial Load | 11,400 lbf |
| Type | Double Seal |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |

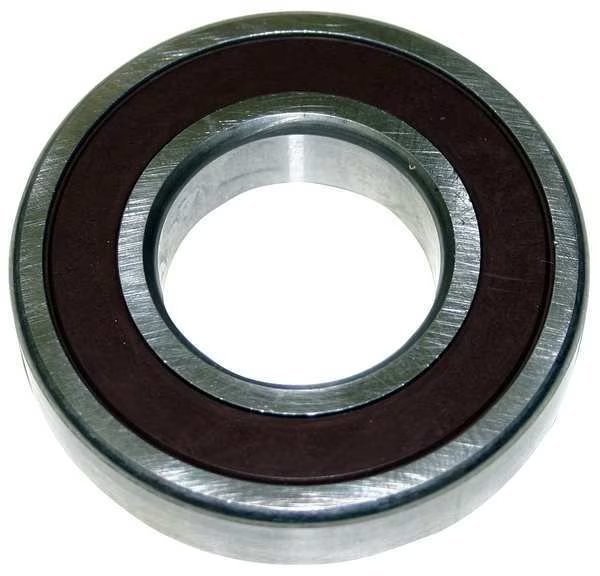

Radial Bearing, Double Seal, 40mm Bore, TIMKEN, Mfr# 308PP
$98,99
Free shipping will be applied on orders over $50
Radial Ball Bearing, Bearing Industry Number 6308, Bore Diameter 40 mm, Closure Double Sealed, Outer Ring Width 23 mm, Outside Diameter 90 mm, Ring Material Alloy Steel, Seal Type Contact, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0/-0.012 mm, Dynamic Radial Load Capacity 11,400 lbf, Includes Retaining Ring No, Lubricant Material SRI 2
9999 in stock
Must order in multiples of 1
Subtotal:
$98.99
