Shaft Locking Type - Couplings
2 Piece Clamp
System of Measurement
Inch
Material - Couplings
Stainless Steel
With Keyway / Without Keyway
Without Keyway
Clearance Dia. (In.)
1.033
Provides
Extra Holding Power for Higher Load Applications without Marring Shafts
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque

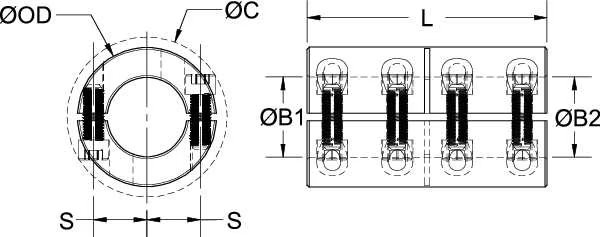

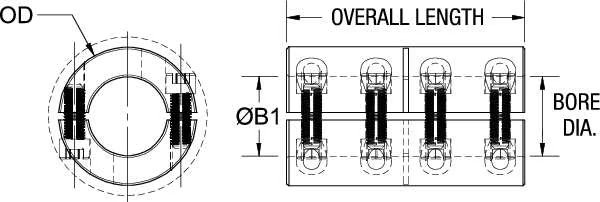

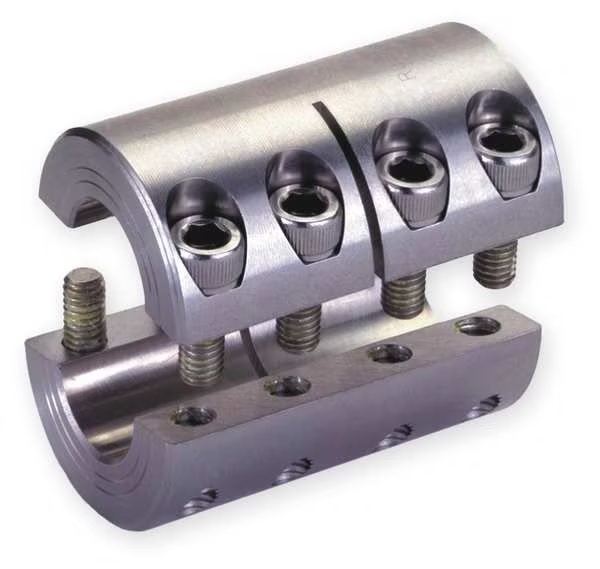

Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Max. Torque (In.-Lbs.)
145
Design
Four Vibration Resistant Socket Capscrews
Type
Two Piece Clamp Type, Without Keyway
Standards
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.0020 in / +0.0005 in
Screw Material
Stainless Steel
Keyway Width 2
Not Applicable
Number of Locking Screws
8
Shaft Tolerance
+0.0000 in / -0.0005 in
Screw Location from Center
0.313 in
Screw Material Grade
18-8 300 Series
Features
Precision Honed Bores, Vibration-Resistant Screws
Coupling Outside Diameter
7/8 in
Minimum Bore Diameter
1/4 in
Coupling Material Finish
Bright
Coupling Material Grade
303
Screw Material Finish
Bright
Included Screws
(8) Clamp Screws
Resistance Properties
Corrosion Resistant
Coupling Construction
Two-Piece
Shaft Locking Type
Clamp On
Maximum Bore Diameter
3/8 in
Clearance Diameter
1.03 in
Minimum Operating Temperature
-40 Degrees F
Keyway Width 1
Not Applicable
Coupling Material
Stainless Steel
Maximum Operating Temperature
350 Degrees F
Keyway Depth 2
Not Applicable
Fastener Tightening Torque
15 lb-in
Keyway Depth 1
Not Applicable
Country of Origin (subject to change)
United States
