| Property | Value |
|---|---|
| Item | Rocker Switch |
| Contact Form | SPST |
| Number of Connections | 2 |
| Switch Function | On/Off |
| Terminals | 0.250 in Quick Connect Tab |
| Mounting Hole | 0.830 in x 1.450 in |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| DC Contact Rating | 20 A @ 12 V |
| HP | 1/2 hp |
| Standards | CSA, UL Listed |
| Body Color | Black |
| Switch Color | Black |
| Product Type | Rocker Switch |
| IP Rating | IP66, IP68 |
| Mounting Hole Length | 1.45 in |
| Mounting Hole Width | 0.83 in |
| Resistance Properties | Moisture Resistant, Shock Resistant, Temperature Resistant, Vibration Resistant |
| Terminal Connection Type | Quick-Connect Tab Terminals |
| Series | V |
| NEMA Enclosure Rating | No Enclosure |
| Switch Function Configuration | On/Off |
| Includes Lamp Module | No Lamp Module Included |
| Operator Illumination | Non-Illuminated |
| Lamp Module Type | No Lamp Module Included |
| Lamp Voltage - Maximum | Not Applicable |
| Lens Color | Not Applicable |
| Lamp Type | No Lamp Module Included |
| Horsepower | 1/2 hp @ 125 to 250 V |
| Operating Temperature - Maximum | 185 Degrees F |
| Number of Positions | 2 |
| Features | Removable Actuator |
| Includes Lens | No Lens Included |
| Operating Temperature - Minimum | -40 Degrees F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

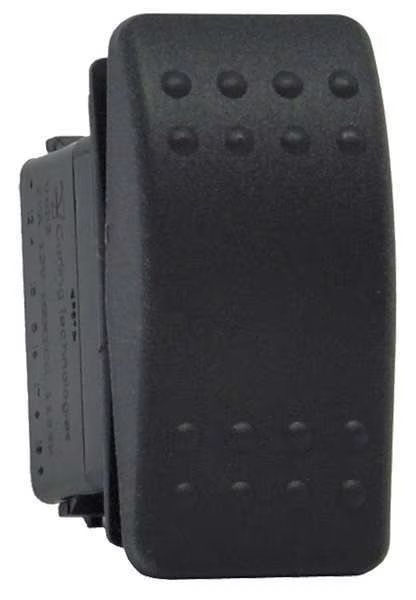

Rocker Switch, SPST, 2 Connections, Carling Technologies, Mfr#: V1D1S00B-AZC00-000
$4.19
Free shipping will be applied on orders over $50
Rocker Switch, Contact Form SPST, Number of Connections 2, Switch Function On/Off, Terminals 0.250 in Quick Connect Tab, Mounting Hole 0.830 in x 1.450 in, AC Contact Rating 10 A @ 250 V, 15 A @ 125 V, DC Contact Rating 20 A @ 12 V, HP 1/2 hp, Body Color Black, Switch Color Black, Standards CSA, UL Listed, IP Rating IP66, IP68
9999 in stock
