| System of Measurement | Inch |
| Thread Size | #8-32 |
| Screw Length | 5/8 in |
| Screw Head Type | Cylindrical |
| Drive Type | Hex |
| Drive Size | 9/64 in |
| Material | Steel |
| Finish | Black Oxide |
| Min. Tensile Strength | 180,000 psi |
| Standards | ASME B18.3 |
| Item | Socket Head Cap Screw |
| Head Height | 0.164 in |
| Rockwell Hardness | C37 to C45 |
| Thread Direction | Right Hand |
| Temp. Range | -65 Degrees F to 300 Degrees F |
| Class | 3A |
| Thread Style | Fully Threaded |
| Fastener Thread Type | UNC (Coarse) |
| Thread Length | 5/8 in |
| Vented Hole Size | Not Vented |
| Package Quantity | 100 |
| Min. Thread Length | 5/8 in |
| Thread Type | Coarse |
| Head Diameter | 0.27 in |
| Minimum Thread Length | 5/8 in |
| Dimensional Standards | ASME B18.3 |
| Finish Type | Black Oxide |
| Minimum Temperature | -65 Degrees F |
| Special Features | Not Applicable |
| Vent Hole Diameter | Not Applicable |
| Flange Thickness | Not Applicable |
| Flange Diameter | Not Applicable |
| Tensile Strength | 180,000 psi |
| Thread Pitch | Not Applicable |
| Countersink Angle | Not Applicable |
| Maximum Temperature | 300 Degrees F |
| Pack Size | Small Pack |
| Thread Fit | 3A |
| Material Type | Steel |
| Basic Material | Steel |
| Fastener Industry Standards | ASME B18.3 |
| Material Grade | Alloy Steel |
| Length | 5/8 in |
| Head Dia. | 0.27 in |
| Screw Style | Socket Head Cap Screw |
| Dia./Thread Size | #8-32 |
| Fastener Finish | Black Oxide |
| Country of Origin (subject to change) | Multiple |

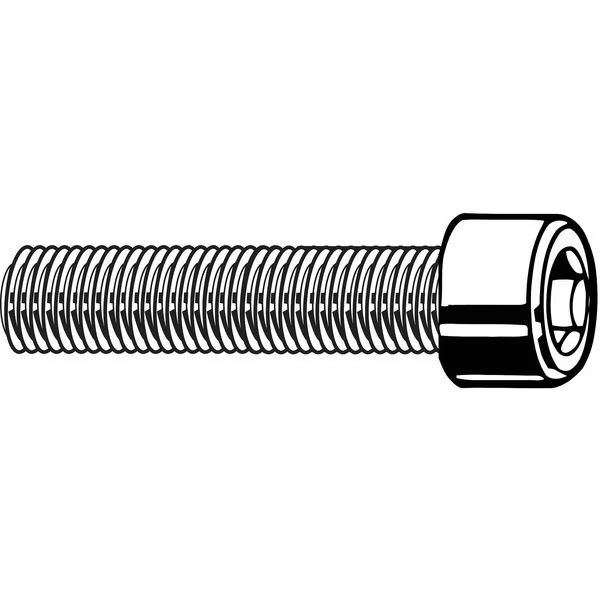

#8-32 Socket Head Cap Screw, Black Oxide Steel, 5/8 in Length, 100 PK, EnjoyTool select, Mfr# U07000.016.0062
$6.68
Free shipping will be applied on orders over $50
Socket Head Cap Screw, Head Type Standard, System of Measurement Inch, Drive Type Socket, Drive Size 9/64 in, Material Steel, Finish Black Oxide, Thread Size #8-32, Minimum Thread Length 5/8 in, Fastener Length 5/8 in, Head Height 0.164 in, Head Diameter 0.27 in, Pack Size Small Pack, Thread Style Fully Threaded, Special Features Not Applicable, Countersink Angle Not Applicable, Dimensional Standards ASME B18.3, Flange Diameter Not Applicable, Flange Thickness Not Applicable
9999 in stock
Must order in multiples of 1
Subtotal:
$6.68
