| Property | Value |
|---|---|
| Inlet Size | 3/4 |
| Outlet Size | 3/4 |
| Body Material | Cast Bronze |
| Item | Safety Relief Valve |
| Outlet Type | FNPT |
| Inlet Type | MNPT |
| Seat Material | EPDM |
| Standards | CRN |
| Factory Set Pressure | 5 psi |
| Overall Length | 2 5/6 in |
| Pressure Range | 5 to 15 psi |
| Disc Material | EPDM |
| Overall Height | 3 11/16 in |
| Steam Capacity (Lb./Hr.) | 290 |
| Spring Material | Stainless Steel |
| Test Lever | Yes |
| Application | Low Pressure Steam Heating and Supply Boilers |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Product Type | Safety Relief Valve |
| Inlet Connection Gender | Male |
| Operating Temperature - Minimum | 0 Degrees F |
| Outlet Connection Gender | Female |
| Operating Temperature - Maximum | 250 Degrees F |
| Outlet Connection Size | 3/4 in |
| Operating Pressure - Maximum | 15 psi |
| Inlet Connection Type | NPT |
| For Media | Steam |
| ASME Section Code | Section IV |
| Operating Pressure - Minimum | 5 psi |
| Inlet Connection Size | 3/4 in |
| Outlet Connection Type | NPT |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

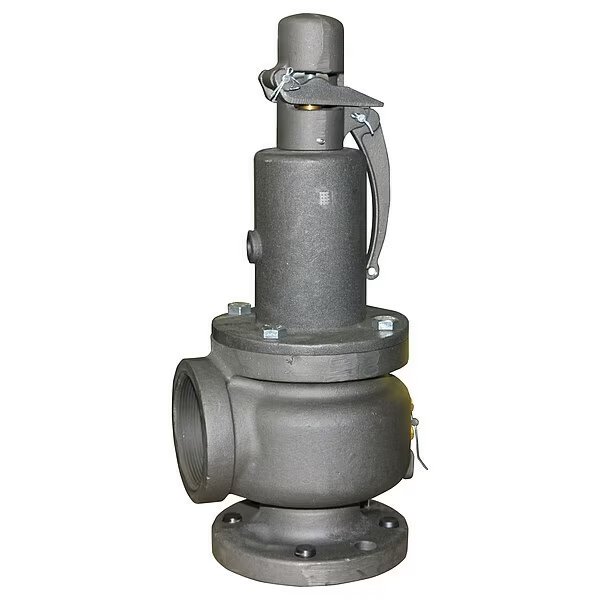

Safety Relief Valve, 3/4 In, 5 psi, Apollo Valves, Mfr#: 13211B05
$63.35
Free shipping will be applied on orders over $50
Safety Relief Valve, Body Material Cast Bronze, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 3/4 in, Outlet Size 3/4 in, Factory Set Pressure 5 psi, Pressure Range 5 to 15 psi, Steam Capacity (Lb./Hr.) 290 lb/hr, Disc Material EPDM, Overall Height 3 11/16 in, Application Low Pressure Steam Heating and Supply Boilers, Overall Length 2 13/16 in, Seat Material EPDM, Spring Material Stainless Steel, Temp. Range 0 Degrees to 250 Degrees F, Test Lever Test Lever Included, Standards CRN
9999 in stock
