Lockset Fire Rating
Not Rated
Electrical/Mechanical
Mechanical

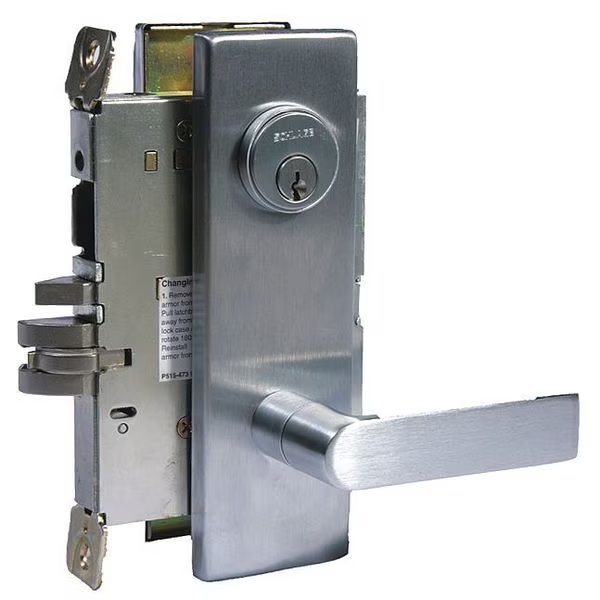

Mortise / Cylindrical
Mortise
Lockset Function
Storeroom
Mortise/Cylindrical
Mortise
Standards
ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437
Features
Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt
Visual Indicator Message
Locked/Unlocked
ANSI/BHMA Finish
Satin Chromium-Plated
Cylinder Core Type
Conventional Core Cylinder
Ligature-Resistant
Not Ligature-Resistant
Hand Orientation
Non-Handed
Door Thickness - Maximum
1 3/4 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Lip Length
1 3/16 in
Lockset Function ANSI Code
F07
Latch Bolt/Dead Bolt
Dead Latch
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Knob/Handle Material
Cast Stainless Steel, Forged Brass
Country of Origin (subject to change)
Mexico
