Center Line Pipe Center Size
3 1/2 in
Electrical Connections
1/2
Valve Design
2-Way/2-Position
Item

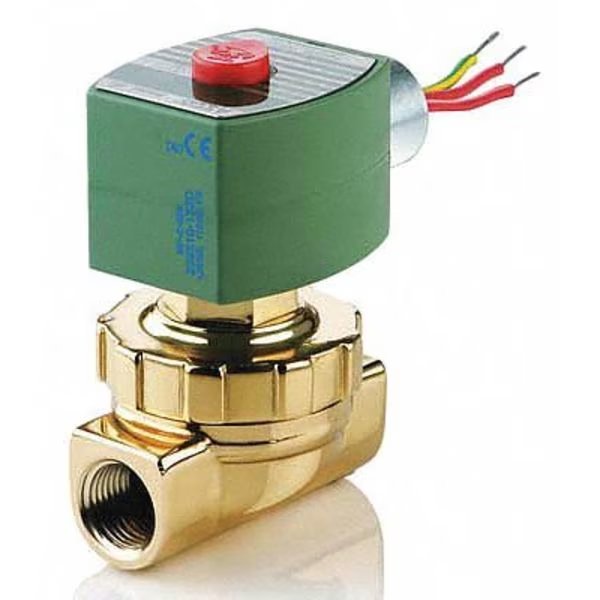

Steam and Hot Water Solenoid Valve
Valve Configuration
Normally Closed
Body Material - Valves
Brass
Min. Operating Pressure Differential
0 psi
Coil Enclosure
Watertight No Junction Box
Max. Operating Pressure Differential Steam
50 psi
Environmental Rating - Valves
Indoor, Outdoor
NEMA Rating
1, 2, 3, 3S, 4, 4X
Max. Fluid Temp. Hot Water
210 Degrees F
Max. Operating Pressure Differential Hot Water
150 psi
Ambient Temp. Range
125 Degrees F
Max. Fluid Temp. Steam
300 Degrees F
Valve Ways and Positions
2-Way/2-Position
Operation Type
Pilot Operated
Application
Hot Water, Steam
Operating Pressure Differential - Minimum
0 psi
Operating Pressure Differential Fuel Gas - Minimum
Not Applicable
Operating Pressure Differential Light Oil - Maximum
Not Rated
Operating Pressure Differential Steam - Minimum
Not Applicable
Valve Starting Configuration
Normally Closed
Operating Pressure Differential Liquid CO2 - Maximum
Not Applicable
Operating Pressure Differential Air/Inert Gas - Minimum
Not Applicable
Operating Pressure Differential Cryogenic Fluid - Maximum
Not Applicable
Fluid Temperature - Maximum
210 Degrees F
Valve Positions
2-Position
Operating Pressure Differential Natural Gas - Minimum
Not Applicable
Ambient Temperature - Minimum
14 Degrees F
Operating Pressure Differential Natural Gas - Maximum
Not Applicable
Operating Pressure Differential Fuel Oil - Maximum
Not Applicable
Operating Pressure Differential Steam - Maximum
50 psi
Operating Pressure Differential Cryogenic Fluid - Minimum
Not Applicable
Operating Pressure Differential Liquid CO2 - Minimum
Not Applicable
Operating Pressure Differential Air/Inert Gas - Maximum
Not Rated
Coefficient of Volume (Cv)
8.8
Valve Type
Diaphragm and Piston
Operating Pressure Differential Fuel Oil - Minimum
Not Applicable
Inlet Connection Type
NPTF
Operating Pressure Differential Hot Water - Maximum
150 psi
Operating Pressure Differential Water - Maximum
Not Rated
Operating Pressure Differential Fuel Gas - Maximum
Not Applicable
Operating Pressure Differential Light Oil - Minimum
Not Applicable
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Operating Pressure Differential Hot Water - Minimum
Not Applicable
Outlet Connection Type
NPTF
Environmental Rating
Hazardous, Indoor, Outdoor, Washdown
Ambient Temperature - Maximum
140 Degrees F
For Media
Hot Water, Steam
Country of Origin (subject to change)
Mexico
