Item | Swivel Male Run Tee |
Tube Size | 3/8 in |
Sub-Category | Tees |
Standards | DOT FMVSS 571.106, SAE J2494, SAE J2494-3 |
Type | DOT Fitting |
Pipe Size | 1/4 in |
Outside Dia. | 3/8 in |
Length | 1.21 in |
Material | Brass |
Connection | Tube x MNPT |
Application | Air |
Gasket Material | Buna N |
Pressure (PSI) | 250 psi |
Thread Size | 1/4 in |
Temp. Range | -40 Degrees to 200 Degrees F |
For Use With | SAE J844 Tubing |
Hex Size | 11/16 in |
Color | Gold |
Overall Length | 2 5/8 in |
Fitting Side B Tube Outer Diameter | 3/8 in |
Fitting Side A Pipe Size | 1/4 in |
Fitting Side C Tube Outer Diameter | 3/8 in |
Fitting Material | Brass |
Specific Fitting Shape | Swivel Adapter Tee |
Maximum Operating Temperature | 200 Degrees F |
System of Measurement | Imperial |
Compatible Tube Material | Nylon (J844 Type A and B), Stainless Steel |
Fitting Side B Connection Type | Push-to-Connect |
Includes Pre-Applied Thread Sealant | No |
Minimum Operating Temperature | 40 Degrees F |
Release Type | Button |
Fitting Side C Connection Type | Push-to-Connect |
Resistance Properties | Compact-Resistant, Impact-Resistant |
Maximum Operating Pressure | 250 psi |
Fitting Side A Connection Type | MNPT |
End Connection Type | Push-to-Connect, Threaded |
For Tube OD | 3/8 in x 3/8 in |
Fitting Pipe Size | 1/4 in |
Fitting Body Material | Brass |
For Tube Outside Diameter | 3/8 in |
Fitting Shape | Tee |
Connection Type | MNPT x Push-to-Connect x Push-to-Connect |
Country of Origin (subject to change) | United States |
Package Quantity | 1 |
Hey, you! Hold everything and check this out
we've got a killer discount for you first order
we've got a killer discount for you first order
Use this discount code at the checkout - SAVE5%

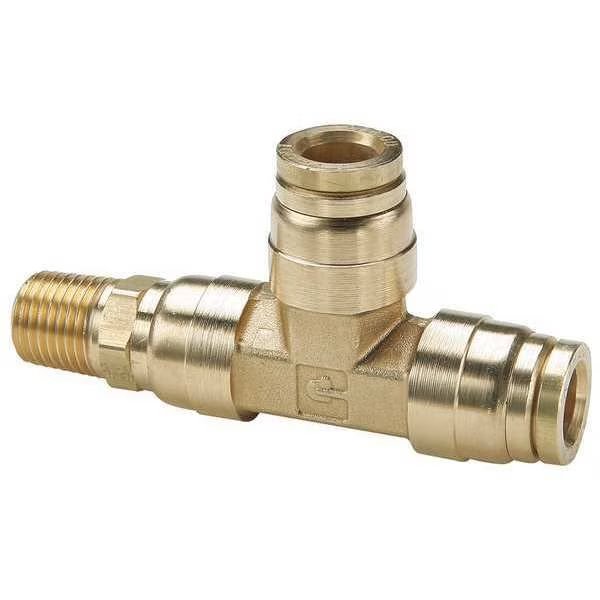

Swivel Male Run Tee, 3/8 in. Tube Size, PARKER, Mfr# 171PTC-6-4
$21.59
$20.94
Free shipping will be applied on orders over $50
Swivel Male Run Tee, Application Air, Color Gold, Fitting Side A Connection Type MNPT, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type Push-to-Connect, Fitting Side A Pipe Size 1/4 in, Includes Pre-Applied Thread Sealant No, Fitting Side B Tube Outer Diameter 3/8 in, Fitting Side C Tube Outer Diameter 3/8 in, Fitting Material Brass, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 2 5/8 in
Out of stock
Brand Name:
PARKER
Mfr #:
171PTC-6-4
Availability: Ships in 1 days
SKU: GRG5434865
Category: Brake Parts
