Item

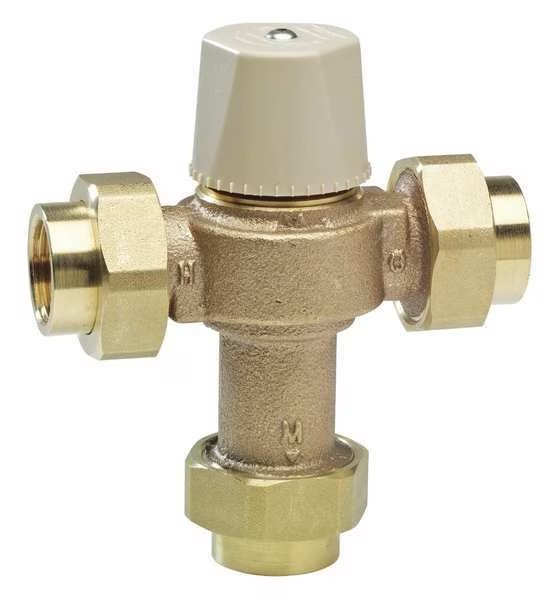

Thermostatic Mixing Valve
Body Material
Copper Silicon Alloy
Temp. Range
80 Degrees to 120 Degrees F
Standards
ASSE 1017, ASSE 1069, ASSE 1070, UPC
Inlet Temperature (Cold)
33 Degrees to 85 Degrees F
For Use With
Domestic Hot Water Applications
Inlet Temperature (Hot)
120 Degrees to 180 Degrees F
Includes
Check Valves, Integral Filter Washers, Solid Wax Hydraulic Principle Thermostat
Operating Pressure - Maximum
150 psi
Inlet Connection Type - Cold
NPT
Inlet Temperature - Minimum Cold
39 Degrees F
Coefficient of Volume (Cv)
Not Applicable
Operating Pressure - Minimum
Not Applicable
Inlet Connection Size - Cold
1 in
Seal Material
Not Applicable
For Media
Hot Water, Water
Inlet Connection Size - Hot
1 in
Outlet Connection Size
1 in
Inlet Temperature - Maximum Hot
180 Degrees F
Inlet Temperature - Maximum Cold
85 Degrees F
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Temperature - Minimum Hot
120 Degrees F
Operating Temperature - Maximum Outlet
120 Degrees F
Inlet Connection Type - Hot
NPT
Operating Temperature - Minimum Outlet
80 Degrees F
Country of Origin (subject to change)
United States
