| Property | Value |
|---|---|
| Bore Dia. | 3 in |
| Stroke Length | 20 in |
| Max. Pressure | 3000 |
| Retracted Length | 30.25 in |
| Rod Dia. | 1.25 in |
| Port Size | SAE 8 |
| Column Load | 10820 lbs |
| Extended Length | 50.25 in |
| Pin Dia. | 1 in |
| Weight | 35.27 lbs |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

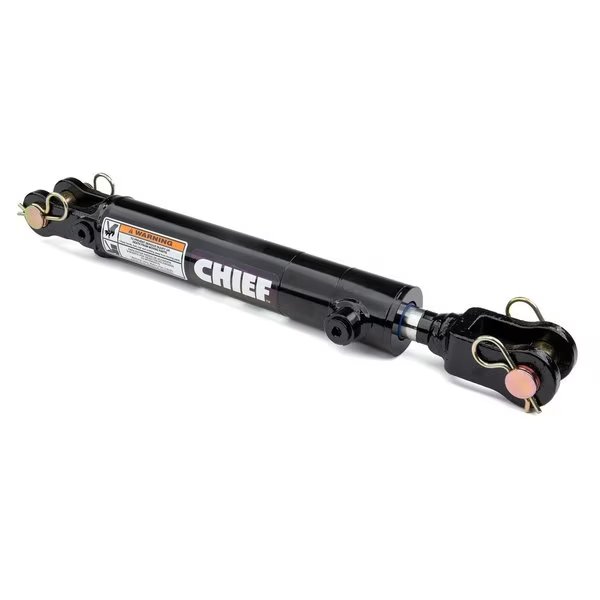

Tie-rod Alternative Hydraulic Cylinder: 3 Bore x 20 Stroke - 1.25 Rod., Bailey, Mfr#: 297127
$282.99
Free shipping will be applied on orders over $50
This 3 in bore x 20 in stroke Chief AT welded cylinder features welded durability with the versatility of a tie-rod. Unlike a tie-rod, there are no bolts, simply remove the screw-on gland, and you're ready to replace the seals. This cylinder provides value pricing without sacrificing quality. Each cylinder undergoes rigorous testing to ensure maximum reliability and performance.
- Built for demanding applications this cylinder is built with steel casting welded clevis end mounts, and hard chrome-plated rods to withstand the harshest conditions.
- Easy Field Repairs; Remove the screw-on gland and you're ready to replace the seals, minimizing downtime and streamlining maintenance.
- Rigorously tested with a 6,000 PSI burst pressure test and 20,000-cycle endurance test.
- High-precision welded piston.
- Gloss black paint finish.
