| Property | Value |
|---|---|
| Item | Triangle Turning Insert |
| Insert Shape | Triangle |
| Insert Style | TNMG |
| Inscribed Circle | 3 |
| Insert Size | 333 |
| Chip-Breaker | Yes |
| Grade | CA315 |
| Corner Radius | 3 |
| Workpiece Compatibility | Cast Iron (K) |
| Insert Material | Carbide |
| Insert Application | Roughing |
| ANSI Number | TNMG333PH-CA315 |
| Relief Angle | 0 Degrees |
| Steel (P) Compatibility | No |
| Rake | Negative |
| Hardened (H) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Super Alloy (S) Compatibility | No |
| Mounting Hole Dia. | 0.150 |
| Nose Radius | 0.0469 |
| ISO Number | TNMG160412PH |
| Cutting Direction | Neutral |
| Mounting Style | Clamp |
| Non Ferrous (N) Compatibility | No |
| Coating | TiCN/Al2O3 |
| Stainless (M) Compatibility | No |
| No. of Edges | 6 |
| Cast Iron (K) Compatibility | Yes |
| Insert Thickness | 0.1875 |
| Chip-Breaker Code | PH |
| Thickness | 3 |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | K |
| Manufacturer Grade | CA315 |
| Insert Holding Type | Straight Hole |
| Secondary Material Application ISO Code | K |
| Finish - Machining | TiCN+Al2O3+TiN |
| Number of Cutting Edges | 6 |
| Clearance Angle | 0 Degrees |
| Secondary Material Application | Cast Iron |
| ANSI Code | TNMG333PHCA315 |
| Through Hole Inside Dia. | 0.15 in |
| Cutting Application | Turning |
| Material - Machining | Carbide |
| Features | Crack Resistant |
| Chip-Breaker Style | Double Sided |
| Included Angle | 60 Degrees |
| Coating Process | CVD |
| Shape | Triangle |
| Primary Material Application | Cast Iron |
| Material | Carbide |
| Insert Code | TNMG333 |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |

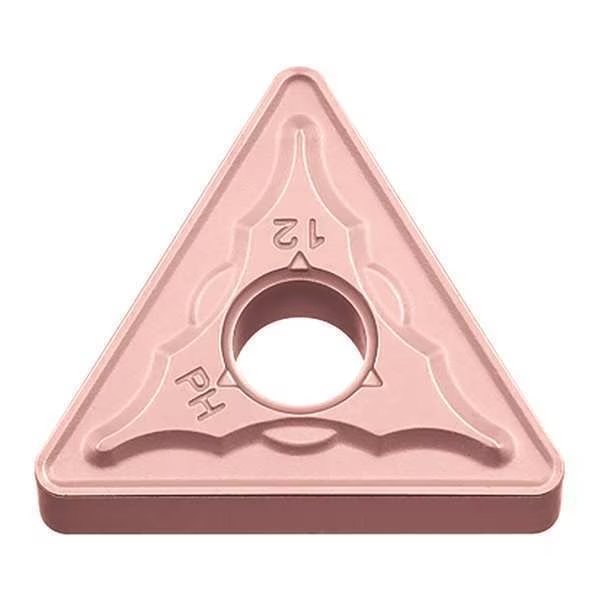

Triangle Turning Insert, Triangle, 3, TNMG, 3, Carbide, Kyocera, Mfr#: TNMG333PHCA315
$8.49
Free shipping will be applied on orders over $50
Triangle Turning Insert, Chip-Breaker Code PH, Inscribed Circle 3/8 in, TiCN+Al2O3+TiN
9999 in stock
Must order in multiples of 10
Subtotal:
$84.9
