| (F)NPT Vent Outlet (In.) | 1/2 in |
| O-Ring | Viton |
| Knob Material | Brass |
| Pressure Range (PSI) | 160-175 psi |
| Inlet (In.) | 1/2 in |
| Max. Working Pressure (PSI) | 175 |
| Overall Length (In.) | 3 7/8 in |
| Max. Temp. (F) | 500 Degrees F |
| Ball Material | Stainless Steel |
| Seats | Brass |
| Item | Unloader Pilot Valve |
| Spring Material | Stainless Steel |
| Max. Flow (CFM) | 60 |
| Max. Operating Temp. (F) | 500 Degrees F |
| Body Material | Brass |
| Outlet (In.) | 1/4 in |
| Overall Height (In.) | 4 5/8 in |
| Application | Air Compressors |
| Poppet | 15% Glass |
| Rated CFM @ Set Pressure | 60 cfm |
| Preset Range (PSI) | 160-175 psi |
| Overall Depth (In.) | 1 15/16 in |
| Minimum Preset Pressure | 160 psi |
| Series | BLG-Series |
| Seat Material | Brass |
| Overall Length | 3.87 in |
| Exhaust Size | 1/2 in |
| Outlet Size | 1/4 in |
| Adjustable Pressure | Yes |
| Maximum Operating Pressure | 250 psi |
| Poppet Material | 15% Glass |
| Inlet Type | NPT |
| Maximum Operating Temperature | 500 Degrees F |
| Minimum Operating Pressure | 175 psi |
| Outlet Type | NPT |
| O-Ring Material | Viton |
| Inlet Size | 1/2 in |
| Maximum Air Flow | 60 cfm |
| Overall Depth | 1.93 in |
| Overall Height | 4.62 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

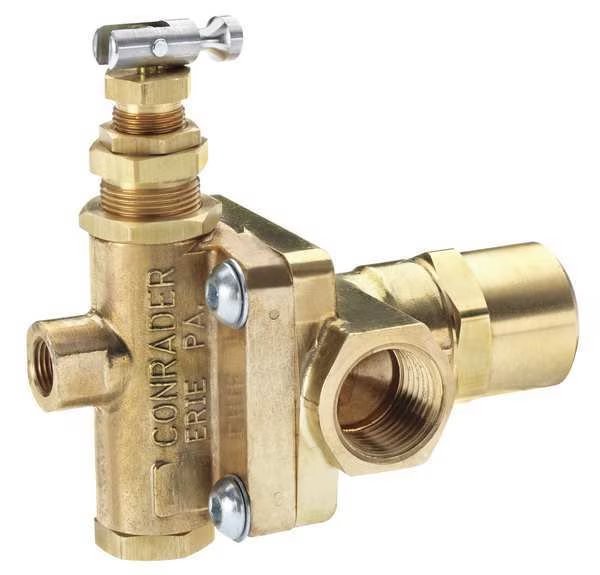

Unloader Valves, 160-175 PSI, CONRADER, Mfr# BLG 160-175
-3% / ea
with subscription
Free shipping will be applied on orders over $50
Unloader Pilot Valve, Inlet Size 1/2 in, Inlet Type NPT, Outlet Size 1/4 in, Outlet Type NPT, Exhaust Size 1/2 in, Minimum Preset Pressure 160 psi, Maximum Operating Pressure 250 psi, Minimum Operating Pressure 175 psi, Adjustable Pressure Yes, Maximum Air Flow 60 cfm, Body Material Brass
9999 in stock
Must order in multiples of 1
Subtotal:
$82.49
