Connection Type
Double Union Female CU SWT
Pressure Adjustment Range
25 to 75 psi
Standards
ASSE 1003, CSA, IAPMO, NSF
Application
Residential and Commercial
Preset Pressure Settings
50 psi
Item

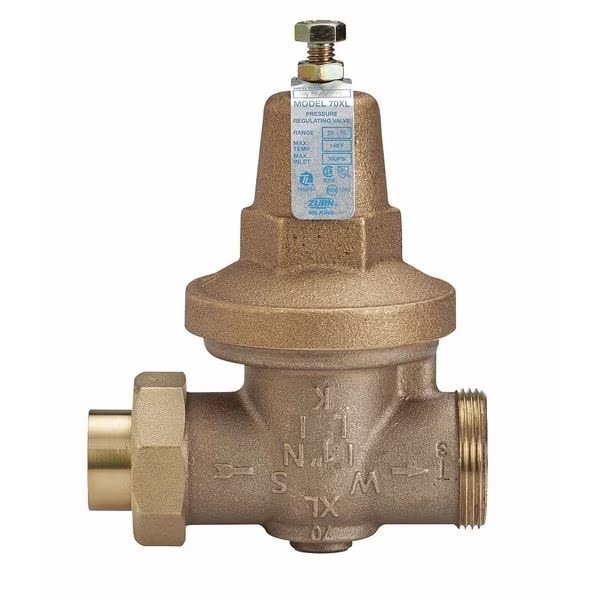

Water Pressure Reducing Valve
Seat Material
Stainless Steel
Factory Set Pressure
50 psi
Inlet Connection Gender
Female
Operating Pressure - Minimum
25 psi
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Pilot Adjustment - Maximum
75 psi
Includes Strainer
Strainer Included
Operating Pressure - Maximum
300 psi
Fluid Temperature - Maximum
140 Degrees F
Flow Rate - Intermittent Maximum
Not Applicable
Outlet Connection Gender
Not Applicable
Inlet Connection Size
1 in
Outlet Connection Size
1 in
Pilot Adjustment - Minimum
25 psi
Flow Rate - Continuous Maximum
42.3 gpm
NSF Certifications for Food and Drinking Water
NSF 61
Country of Origin (subject to change)
United States
