Output Voltage
200 to 240V AC
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
Standards
CE, EN61800-5-1, UL 508C
Output Frequency Range
0.1 to 400 Hz
Protection
External alarm input, Ground fault, Input phase loss, Output phase loss detected, Overcurrent, Overheating, Overload, Overvoltage, Short-circuit, Undervoltage

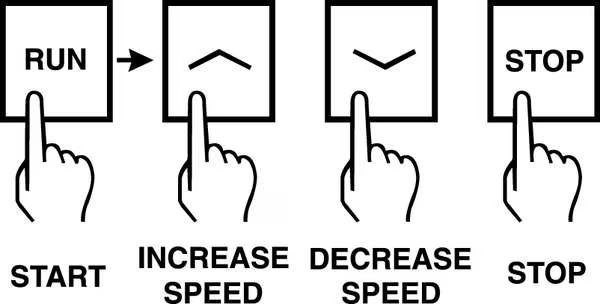

Start/Stop Control
Programmable
Output Type
Analog, Digital
Maximum Output Power
1/4 hp
Adjustable Acceleration Time
0 to 3,600 sec
Adjustable Deceleration Time
0 to 3,600 sec
Maximum Output Current
1.5 A
Number of Outputs
(2) Digital; (1) Analog
Digital Readout
Current, Frequency, PID Operating Data, Speed, Voltage Output
Number of Inputs
(5) Digital; (2) Analog
Output Voltage Range
0V AC to 230V AC
Input Voltage Range
200V-240V AC +10% / -15%
Application
Centrifugal Separators, Conveyors, Fans, Food Processing Machines, Pumps
Input Type
Analog, Digital
Torque Application
Constant Torque
Country of Origin (subject to change)
Multiple
