| Property | Value |
|---|---|
| CAD Available | Yes |
| Item | Flat Washer |
| Material | Steel |
| Finish | Zinc Yellow |
| For Screw Size | 3/4 |
| Outside Diameter | 1 15/32 in |
| Minimum Thickness | 0.134 in |
| Maximum Thickness | 0.134 in |
| Standards | ASME B18.22.1, ASTM F436 |
| System of Measurement | Inch |
| Inside Diameter | 0.813 in |
| Thickness Tolerance | +.026/-.026 |
| Rockwell Hardness | C38 to C45 |
| Package Quantity | 20 |
| Application | Smooth Hard Surface for Distributing Bolt Load |
| Color | Yellow |
| Type | SAE |
| Material Grade/Class | Grade 8 |
| Dimensional Standards | ASME B18.22.1 Type A Narrow, SAE Standard |
| Pack Size | Small Pack |
| Material Quality Standards | ASTM F436 |
| For Use With | Nuts and Bolts |
| Bolt Compatibility | Grade 8 |
| Country of Origin (subject to change) | Multiple |

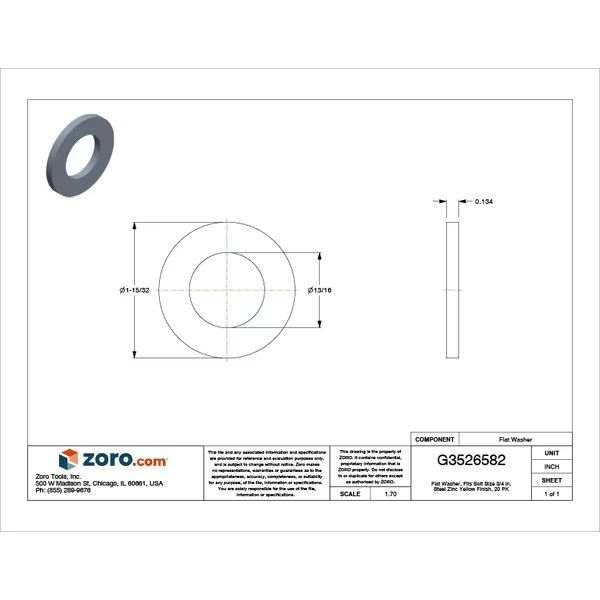

Flat Washer, For Screw Size 3/4" , Steel Zinc Yellow Finish, 20 PK, EnjoyTool Select, Mfr#: 514101G
$6.49
Free shipping will be applied on orders over $50
SAE Washer, Flat Washer Type SAE, Dimensional Standards ASME B18.22.1 Type A Narrow, SAE Standard, Material Steel, Material Grade/Class Grade 8, Finish Zinc Yellow, For Screw Size 3/4 in, Inside Diameter 0.813 in, Outside Diameter 1 15/32 in, Maximum Thickness 0.134 in, System of Measurement Inch, Minimum Thickness 0.134 in, Color Yellow, Material Quality Standards ASTM F436, Pack Size Small Pack, Rockwell Hardness 38HRC, Thickness Tolerance +0.026/-0.026 in, Package Quantity 20
9999 in stock
Subtotal:
$6.49
