Body Material
Lead Free Copper Silicon Alloy
Compliance
ASSE Standard 1003, (ANSI A112.26.2), CSA Standard B356, ANSI/NSF Standard 61-8, IAPMO, City of Los Angeles
Application
Commercial and Residential
Preset Pressure Settings
50 psi
Pressure Adjustment Range
25 to 75 psi
Material
Lead Free Copper Silicon Alloy
Item

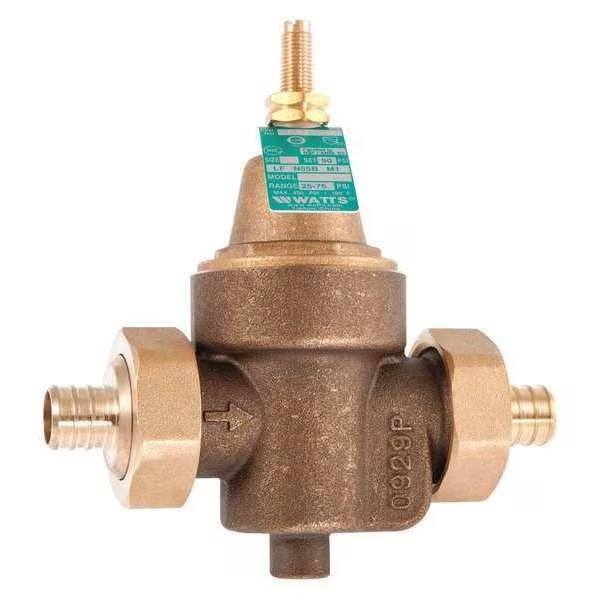

Water Pressure Reducing Valve
Standards
ANSI A112.26.2, ASSE 1003, Certified by NSF to ANSI/NSF Standard 61 Annex G, CSA B356, Listed by IAPMO and City of Los Angeles
Inlet Connection Size
1 in
Includes Strainer
Strainer Included
Pilot Adjustment - Maximum
75 psi
Overall Width
Not Applicable
Inlet Connection Type
Not Available
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Outlet Connection Type
Not Available
Factory Set Pressure
50 psi
Fluid Temperature - Maximum
180 Degrees F
Operating Pressure - Maximum
400 psi
Outlet Connection Size
1 in
NSF Certifications for Food and Drinking Water
NSF 61G
Pilot Adjustment - Minimum
25 psi
Country of Origin (subject to change)
United States
