| Property | Value |
|---|---|
| Pipe Size | 1 1/2 in |
| Connection Type | FNPT |
| Body Material | Bronze |
| Max. Pressure | 400 psi |
| Stem Material | Brass |
| Compliance | NSF/ANSI 372 |
| Overall Length | 3.75 in |
| Standards | ANSI B1.20.1, NSF/ANSI 372 |
| Seal Material | Not Applicable |
| Seat Material | TFE |
| Temp. Range | Up to 350 Degrees F |
| Item | Manual Two-Way Ball Valve |
| Ball Material | Bronze |
| General Connection Type | Female NPT |
| Coefficient of Volume (Cv) | Not Rated |
| Operating Temperature - Minimum | 33 Degrees F |
| Maximum Pressure - Steam | 400 psi |
| Handle Type | Lever |
| Operating Temperature - Maximum | 350 Degrees F |
| 3-A Standard Compliance | Not Rated |
| Average Surface Roughness (Ra) | Not Applicable |
| Ball Port Style | Full Port |
| Valve Ways | 2-Way |
| Handle Material | Stainless Steel |
| Vacuum Service Rating | Not Rated |
| Nominal Valve Size | 1 1/2 in |
| Included Mounting | Not Applicable |
| Connection Type - Side 1 | NPT |
| Maximum Pressure - Operating | 400 psi |
| Connection Size - Side 1 | 1 1/2 in |
| Connection Gender - Side 2 | Female |
| Handle Height | 2.88 in |
| Handle - Locking | Non-Locking |
| Vented Ball Valve | Non-Vented |
| Connection Type - Side 2 | NPT |
| For Media | Air, Combustible Gases, Steam, Water |
| Valve Construction | One-Piece |
| Maximum Pressure - Combustible Gas | Not Rated |
| ANSI Flange Class | Not Applicable |
| Connection Gender - Side 1 | Female |
| Valve Body Style | Straight |
| Handle Length | 4.75 in |
| Connection Size - Side 2 | 1 1/2 in |
| Pipe Schedule Compatibility | Not Applicable |
| Color - Valve Handle | Green |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

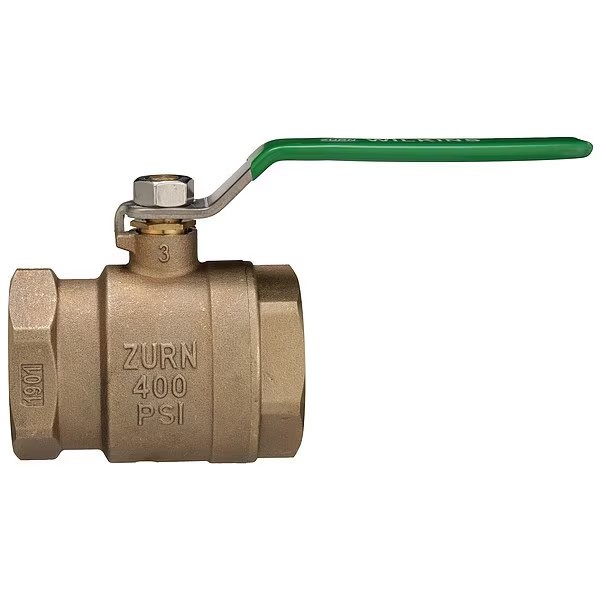

Manual 2-Way Ball Valve, NPT, Bronze, Zurn, Mfr#: 112-850TXL
$299.99
Free shipping will be applied on orders over $50
Manual Two-Way Ball Valve, Body Material Bronze, For Media Air, Combustible Gases, Steam, Water, Valve Construction One-Piece, Nominal Valve Size 1 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 400 psi, Maximum Pressure - Steam 400 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Rated, Ball Material Bronze, Ball Port Style Full Port, Handle - Locking Non-Locking
9999 in stock
