Dispenser Operation
Electronic Sensor (Bottle), Front and Side Pushbar (Fountain)
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Compliance
Accessibility, Electrical, Lead, Mechanical, Water Qualtiy
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399
Refrigerated / Non-Refrigerated
Refrigerated
Operation
Push Bar Fountain, Touchless Bottle Filler
Item

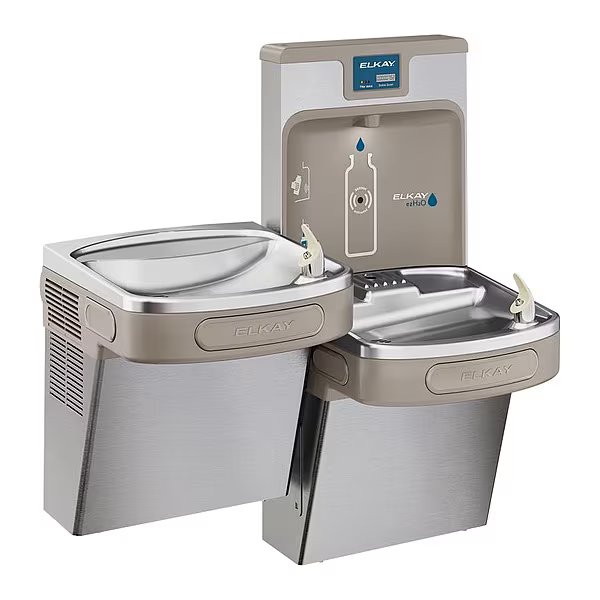

Drinking Fountain with Bottle Filler
Type
Bottle Filler, Two-Level Drinking Fountain
Features
Automatic Filter Status Reset, Green Ticker, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor
Maximum Cold Water Temperature
50 Degrees F
Station Type
Bi-Level Fountain, Bottle Filling Dispenser
Filter Status Indicator
Yes
Minimum Constant Stream Pressure
20 psi
Bottle Filler Actuation
Touchless Bottle Filler
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Bottle Filler Depth
3 1/2 in
Water Filter Included
Filtered
Bi-Level Field Adjustable
Yes
Mounting Hole Diameter
7/16 in
Housing Material Finish
Silver Stainless Steel Plain
Drain Outside Diameter
1 1/2 in
Chilling Capacity
8 gph @ 50 Degrees F
Cooling Capacity
8 gph @ 50 Degrees F
Compressor Horsepower
1/5 hp
Minimum Supply Line Pressure
20 psi
Temperature Adjustment
Factory Set but Adjustable
Bottle Dispenser Actuation
Sensor
Maximum Constant Stream Pressure
105 psi
Fountain and Bottle Filler Type
Bi-Level Fountain
Drinking Fountain Operation
Push Bar Fountain
Power Source
Electric Corded
Number of Mounting Holes
6
Refrigeration
Refrigerated
Fountain and Bottle Dispenser Operation
Front Pushbar/Side Pushbar ; Sensor
Housing Material
Stainless Steel
Fountain Actuation
Front Pushbar/Side Pushbar
Country of Origin (subject to change)
United States
