Item - Water Heaters

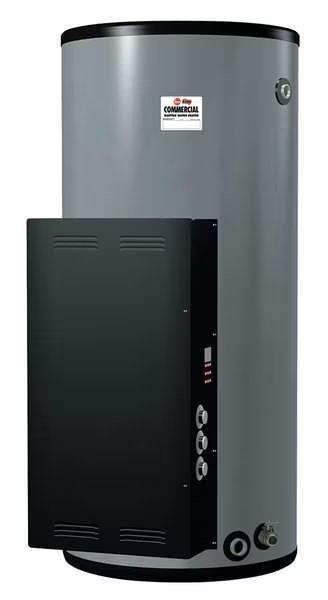

Electric Water Heater
Commercial / Residential
Commercial
Water Heater Design
Whole House
Tank Capacity - Plumbing
119.9 gal
Voltage - Water Heaters
480
Overall Height - Water Heaters
67 5/8 in
Compliance
Exceeds Energy Effeciency Codes of all States. Design Certified by Underwriters Laboratory (UL) to Meet UL Standard 1453 and UL/NSF005., Tested According to DOE Test Procedures and Exceed the Minimum Energy Factor Requirements of Current ASHRAE Standards
Includes
Brass Drain Valve, Factory-Installed Tu0026P Valve
Recovery @ 120 F Rise
62 gph
Height to Top of Vent Connection
67.63
Recovery @ 110 F Rise
68 gph
Height to T and P Opening
58-3/4
Manufacturers Warranty Length
3 yr Limited Tank, 1 yr Limited Parts
Height to Hot Side Connection
67 5/8 in
Height to Top of Heater
67.63
Recovery @ 130 F Rise
57 gph
Standards
AHRI Compliant, ASME, CSA Certified, LWH, UL EPH Listed, UL Listed
System of Measurement
Inch
Recovery @ 140 F Rise
53 gph
Recovery @ 50 F Rise
149 gph
Item
Electric Water Heater
Recovery @ 70 F Rise
106 gph
Recovery @ 100 F Rise
74 gph
Water Connection
1-1/2 in NPT
Height to Cold Side Connection
4 3/4 in
Residential / Commercial
Commercial
Application
Ferrous / Non-Ferrous Metal Over 1/8
Features
Inputs of 3KW to 108KW, Four Voltages to choose from, Lifeguard Stainless Steel Elements, 98% Thermal Effeciency, System Sentenal, Full Port/Full Flow Brass Drain Valve
Temp. Range
120 Degrees to 180 Degrees F
Recovery @ 90 F Rise
83.0 gph
Connection Location
Cold Side/Hot Top
Amps AC
22 for 3 Phase, 38 for 1 Phase
Maximum Delivered Temperature
181 Degrees F
Height to Cold Inlet
4.8 in
First Hour Rating
Not Applicable
Tank Outer Shell Finish
Porcelain Enamel
Tank Insulation Material
Polyurethane
Maximum Recovery Flow Rate
149 gph @ 50 Degrees F
Maximum Water Pressure
150 psi
Included Valves
Temperature and Pressure Relief
Tank Outer Shell Material
Steel
Height to T and P Valve
58.75 in
Recovery Rate @ Rise
106 gph @ 70 Degrees F, 53 gph @ 140 Degrees F, 57 gph @ 130 Degrees F, 62 gph @ 120 Degrees F, 68 gph @ 110 Degrees F, 74 gph @ 100 Degrees F, 83 gph @ 90 Degrees F
Height to Hot Outlet
67.6 in
Manufacturer Warranty Length
1 yr Limited Parts, 3 yr Limited Tank
Equivalent BtuH
61,420 BtuH
Water Connection Location
Side
Thermostat Mounting
Surface
Power Consumption
18,000 W
Tank Lining Material
Vitreous Glass
Minimum Delivered Temperature
120 Degrees F
Element Material
Stainless Steel
Country of Origin (subject to change)
United States
