Item

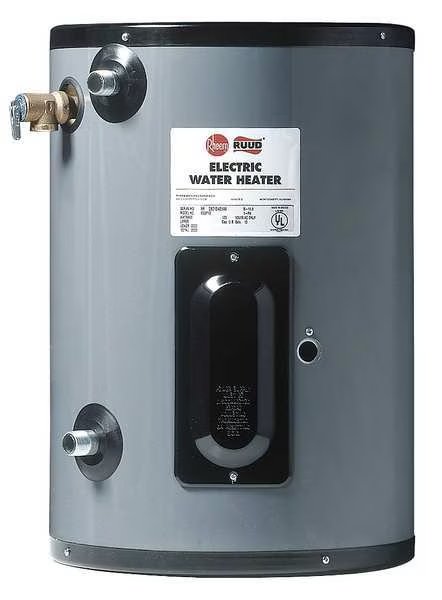

Point-of-Use Electric Water Heater
Item - Water Heaters
Electric Water Heater
Height to Hot Side Connection
21 7/8 in
Standards
ASME, CSA Certified, UL Listed
Manufacturers Warranty Length
3 yr Limited Tank, 1 yr Limited Parts
Commercial / Residential
Commercial
Water Heater Design
Point-of-Use
Height to Cold Side Connection
4 5/8 in
Height to Top of Heater
24.25
Tank Capacity - Plumbing
15.0 gal
Water Connection
3/4 in NPT
Includes
Resistor Elements, Surface Mounted Thermostat
Temp. Range
110 Degrees to 170 Degrees F
Compliance
Design Certified Under UL Standard 174., Exceed the Minimum Energy Factor Requirements of ASHRAE, Exceeds Energy Effeciency Codes of all States, Tested Cccording to DOE Test Procedures
Voltage - Water Heaters
277
Height to T and P Opening
19-3/8
Overall Height - Water Heaters
24 1/4 in
System of Measurement
Inch
Residential / Commercial
Commercial
Recovery @ 140 F Rise
6 gph
Recovery @ 120 F Rise
7 gph
Recovery @ 100 F Rise
8 gph
Height to Top of Vent Connection
24.25
Features
Automatic Temperature Control
Water Connection Location
Side
Tank Outer Shell Material
Steel
First Hour Rating
Not Applicable
Manufacturer Warranty Length
3 yr Limited Tank
Maximum Water Pressure
150 psi
Maximum Recovery Flow Rate
20 gph @ 40 Degrees F
Height to Hot Outlet
21.87 in
Height to T and P Valve
19.37 in
Maximum Delivered Temperature
170 Degrees F
Thermal Efficiency
Not Rated
Included Valves
Temperature and Pressure Relief
Tank Insulation Material
Polyurethane
Mounting Type
Wall Mounting
Included Valve Type
T u0026 P Relief
Tank Outer Shell Finish
Porcelain Enamel
Thermostat Mounting
Surface
Minimum Delivered Temperature
110 Degrees F
Recovery Rate @ Rise
10 gph @ 80 Degrees F, 14 gph @ 60 Degrees F, 20 gph @ 40 Degrees F, 6 gph @ 140 Degrees F, 7 gph @ 120 Degrees F, 8 gph @ 100 Degrees F
Height to Cold Inlet
4.62 in
Overall H x Dia.
24.25 in x 17.75 in
Country of Origin (subject to change)
Mexico
