| Item | Brake Motor |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Type | Rigid Base |
| HP | 1 |
| RPM Range | 1,701-1,800 |
| Voltage | 208-230/460V AC |
| Frame | 56C |
| Motor Thermal Protection | Thermostat |
| Motor Service Factor | 1.15 |
| Voltage Compatibility | 208-230/460V AC |
| Motor Application | Brake Motor |
| Motor Sub Application | Brake |
| Motor Design | 3-Phase |
| Nameplate RPM | 1,760 |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Position | Horizontal |
| Motor Frame Material | Steel |
| Motor Shaft Design | Keyed |
| Standards | CSA, UL Recognized |
| Includes | Key |
| Usable @ 200V | No |
| Brake Rating | 6 ft-lb |
| Bearing Protection | Double Shield |
| Usable @ 208V | Yes |
| Hz | 60 Hz |
| Weight | 45 lb |
| Nominal Efficiency | 85.5 % |
| Duty Cycle | Continuous |
| Conduit Box Position | F1 |
| Overall Length | 17 3/16 in |
| Shaft Dia. | 5/8 in |
| Manufacturers Warranty Length | 18 mo |
| Conduit Box Location | Exterior |
| Max. Ambient Temp. | 40 Degrees C |
| Inverter Rated | No |
| No. of Speeds | 1 |
| Length Less Shaft | 15 7/16 in |
| Full Load Amps | 1.70 A |
| Ins. Class | F |
| Shaft Length | 1 7/8 in |
| Brake Model/Series | Series 56000 |
| Motor Bearings | Ball |
| Phase | Three |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

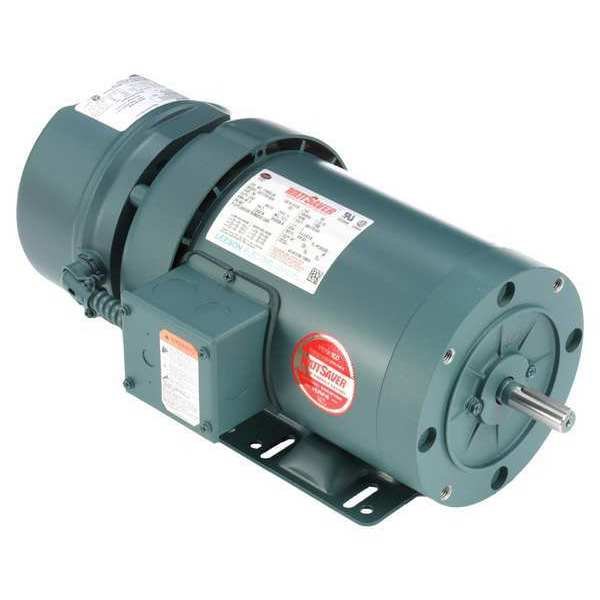

3-Phase Brake Motor, 1 HP, 56C Frame, 208-230/460V AC Voltage, 1,760 Nameplate RPM, LEESON, Mfr# 119563.00
$1280,99
-$1280.99 / ea
with subscription
Free shipping will be applied on orders over $50
Brake Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 208-230/460V AC, 1.70 A Full Load Amps, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Thermostat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated No
9999 in stock
Must order in multiples of 1
Subtotal:
$1280.99
