Item | Air Brake Fitting |
Tube Size | 3/8 in |
Pressure (PSI) | 225 |
Type | Screw Together |
Connection | Hose x Pipe |
Thread Size | 3/4-20 |
Pipe Size | 3/8 in |
For Use With | Rubber Airbrake Hose |
Standards | DOT FMVSS 571.106 |
Sub-Category | Adapters |
Temp. Range | -65 Degrees to 250 Degrees F |
Material | Brass |
Application | Air |
Maximum Operating Pressure | 225 psi |
Compatible Tube Material | Rubber |
Resistance Properties | Corrosion-Resistant |
Fitting Material | Brass |
Fitting Side B Pipe Size | 3/8 in |
Fitting Side A Connection Type | Compression |
Maximum Operating Temperature | 200 Degrees F |
Specific Fitting Shape | Straight Adapter |
Fitting Side A Tube Outer Diameter | 3/8 in |
Minimum Operating Temperature | 40 Degrees F |
Thread Size B | 3/4-20 |
Fitting Side B Connection Type | MNPT |
System of Measurement | Imperial |
Connection Type | Compression x MNPT |
Threading Size | 3/4-20 |
Fitting Body Material | Brass |
End Connection Type | Compression, Threaded |
Fitting Pipe Size | 3/8 in |
For Tube OD | 3/8 in |
For Tube Outside Diameter | 3/8 in |
Fitting Shape | Adapter |
Country of Origin (subject to change) | United States |
Package Quantity | 1 |
- You cannot add "GIFT BOX" to the cart because the product is out of stock.

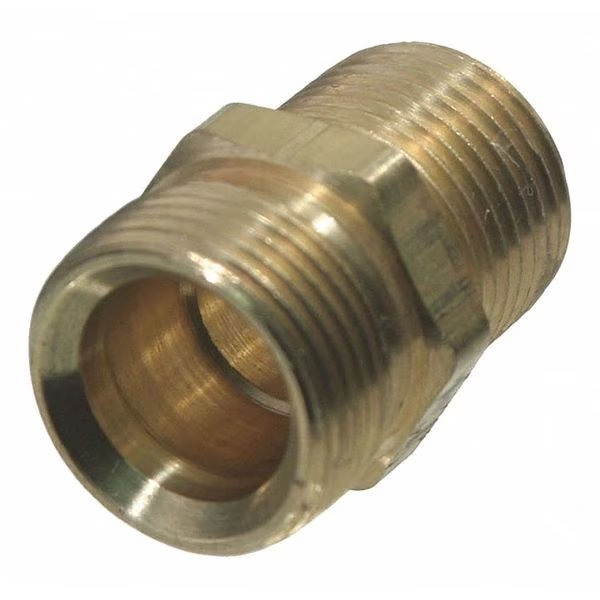

Air Brake Fitting, Screw Together, 3/8Pipe, TRAMEC SLOAN, Mfr# A66
$3,79
Free shipping will be applied on orders over $50
Air Brake Fitting, Application Air, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPT, Fitting Material Brass, Fitting Side A Tube Outer Diameter 3/8 in, Maximum Operating Pressure 225 psi, Maximum Operating Temperature 200 Degrees F, Specific Fitting Shape Straight Adapter, Fitting Side B Pipe Size 3/8 in, Thread Size B 3/4-20, System of Measurement Imperial, Standards DOT FMVSS 571.106, Compatible Tube Material Rubber, Minimum Operating Temperature 40 Degrees F
9999 in stock
Must order in multiples of 1
Subtotal:
$3.79
