| Property | Value |
|---|---|
| Item | Air Compressor Motor |
| Motor Design | Capacitor-Start |
| HP | 6 |
| RPM Range | 3,001-3,600 |
| Voltage | 230V AC |
| Frame | R56Y |
| Motor Thermal Protection | Manual |
| Motor Enclosure Design | Open Dripproof |
| Includes | Key |
| Motor Mounting Type | Rigid Base |
| Shaft Dia. | 7/8 in |
| Weight | 53 lb |
| Manufacturers Warranty Length | 18 mo |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Ins. Class | F |
| Motor Shaft Rotation | CCWSE |
| Nameplate RPM | 3,600 |
| Usable @ 208V | No |
| Hz | 60 Hz |
| No. of Speeds | 1 |
| Length Less Shaft | 12 1/4 in |
| Full Load Amps | 24.0 A |
| Usable @ 200V | No |
| Nominal Efficiency | 88 % |
| Phase | Single |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Application | Air Compressor |
| Voltage Compatibility | 230V AC |
| Duty Cycle | Continuous |
| Shaft Length | 2 1/4 in |
| Motor Shaft Design | Keyed |
| Overall Length | 14 9/16 in |
| Max. Ambient Temp. | 40 Degrees C |
| Standards | CSA, UL Listed |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

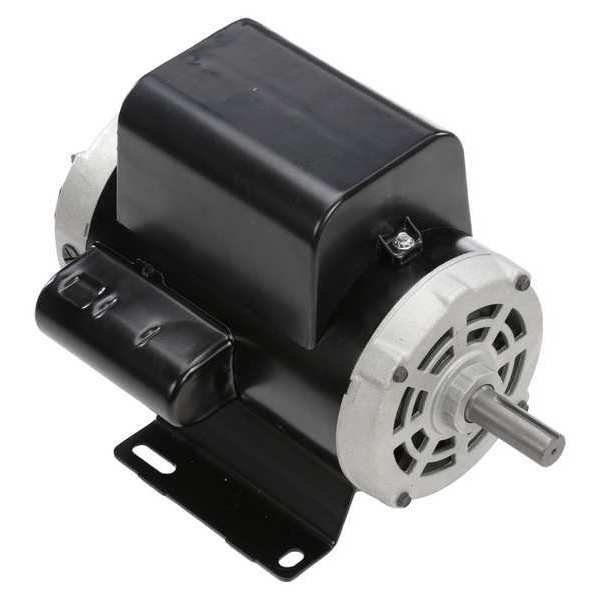

Air Compressor Motor, 6 hp, 3600 RPM, Century, Mfr#: B387
$713.69
Free shipping will be applied on orders over $50
Air Compressor Motor, Single Phase, Motor Design Capacitor-Start, 6 HP, Nameplate RPM 3,600, No. of Speeds 1, Voltage 230V AC, Full Load Amps 24.0 A, R56Y Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Shaft Dia. 7/8 in, Shaft Length 2 1/4 in, Motor Shaft Design Keyed
9999 in stock
Subtotal:
$713.69
