Center Line Pipe Center Size
7
Valve Design
2-Way/2-Position
Valve Configuration
Normally Closed
Body Material
Stainless steel
Item

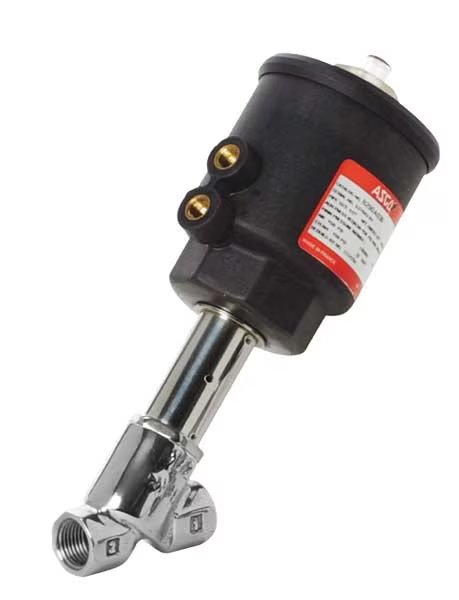

Angle Body Piston Valve
Actuator
Pilot Solenoid Valve, Not Included
Coefficient of Volume
19.0
Valve Ways and Positions
2-Way/2-Position
Min. Operating Pressure Differential
0 psi
Min. Pilot Pressure
60 psi
Stem Material
431 Stainless Steel
Max. Pilot Pressure
150 psi
Environmental Rating - Valves
Indoor, Outdoor
Seal Material - Valves
PTFE
Disc Material
304L Stainless Steel
Max. Fluid Temp.
366 Degrees F
Ambient Temp. Range
15 Degrees to 140 Degrees F
Max. Operating Pressure Differential Water
150 psi
Max. Operating Pressure Differential Steam
150 psi
Body Material - Valves
316L Stainless Steel
Environmental Rating
Indoor, Outdoor
Operating Pressure Differential - Minimum
0 psi
Inlet Connection Type
NPTF
Pilot Pressure - Maximum
150 psi
Pilot Pressure - Minimum
60 psi
Operation Type
Pilot Operated
Ambient Temperature - Minimum
15 Degrees F
Outlet Connection Type
NPTF
Operating Pressure Differential Water - Maximum
150 psi
Operating Pressure Differential Steam - Maximum
150 psi
Valve Positions
2-Position
For Media
Aggressive Gases, Aggressive Liquids, Air, Fuel Oil, Hot Water, Inert Gases, Light Oil, Oxygen, Steam, Water
Actuator Type
Single Air Pilot
Valve Starting Configuration
Normally Closed
Ambient Temperature - Maximum
140 Degrees F
Coefficient of Volume (Cv)
19
Fluid Temperature - Maximum
366 Degrees F
Country of Origin (subject to change)
United States
