Center Line Pipe Center Size
5 5/8
Valve Design
2-Way/2-Position
Valve Configuration
Normally Closed
Item

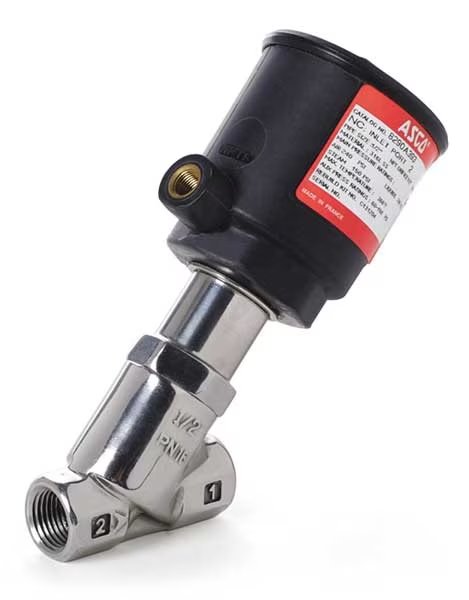

Angle Body Piston Valve
Valve Ways and Positions
2-Way/2-Position
Min. Operating Pressure Differential
0 psi
Max. Operating Pressure Differential Steam
150 psi
Max. Pilot Pressure
150 psi
Actuator
Pilot Solenoid Valve, Not Included
Coefficient of Volume
11.0
Seal Material - Valves
PTFE
Stem Material
431 Stainless Steel
Ambient Temp. Range
15 Degrees to 140 Degrees F
Environmental Rating - Valves
Indoor, Outdoor
Max. Fluid Temp.
366 Degrees F
Body Material - Valves
Bronze
Min. Pilot Pressure
60 psi
Max. Operating Pressure Differential Water
150 psi
Inlet Connection Type
NPTF
Operating Pressure Differential Steam - Maximum
150 psi
Environmental Rating
Indoor, Outdoor
Operation Type
Pilot Operated
Valve Positions
2-Position
Pilot Pressure - Minimum
60 psi
Outlet Connection Type
NPTF
Pilot Pressure - Maximum
150 psi
Fluid Temperature - Maximum
366 Degrees F
Valve Starting Configuration
Normally Closed
Actuator Type
Single Air Pilot
Operating Pressure Differential Water - Maximum
150 psi
Ambient Temperature - Minimum
15 Degrees F
Coefficient of Volume (Cv)
11
For Media
Aggressive Gases, Aggressive Liquids, Air, Fuel Oil, Hot Water, Inert Gases, Light Oil, Oxygen, Steam, Water
Operating Pressure Differential - Minimum
0 psi
Ambient Temperature - Maximum
140 Degrees F
Country of Origin (subject to change)
United States
