| Property | Value |
|---|---|
| Blade Material | Sheet Steel |
| CFM @ 0.000-In. SP | 642 cfm |
| Depth | 3 1/8 in |
| Height | 8 7/8 in |
| Housing Material | Cast Aluminum |
| Shape | Square |
| Watts | 55 W |
| Width | 8 7/8 in |
| Voltage | 24V DC |
| Fan Width | 8-7/8 |
| Electrical Connection - Fans | Terminals |
| Max. Ambient Temp. | 140 Degrees F |
| Amps | 2.6 A |
| Fan Height | 8-7/8 |
| Housing Finish | Black Powder Coated |
| Fan Dia. | 3-3/16 |
| Fan Shape | Square |
| Fan Watts | 55 |
| Electrical Connections | Terminal Strip |
| dBA | 60 |
| Motor Insulation | Class B |
| IP Rating | 42 |
| Fan Width | 8-7/8 |
| Mounting Eye O.C. - Fans | 9-7/16 |
| Fan Depth | 3-1/8 |
| Fan RPM | 2950 |
| Item | Axial Fan |
| Fan Item | Axial Fan |
| Fan Voltage | 24VDC |
| Mounting Position | Vertical or Horizontal |
| Fan dBA | 60 |
| Motor Type | Brushless DC |
| Bearings | Ball |
| Mounting Eye O.C. | 9 7/16 in |
| Standards | UL and C-UL Recognized and RoHS compliant |
| Bearing Type | Ball |
| RPM | 2950 RPM |
| Environmental Applications | Equipment Cooling |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |

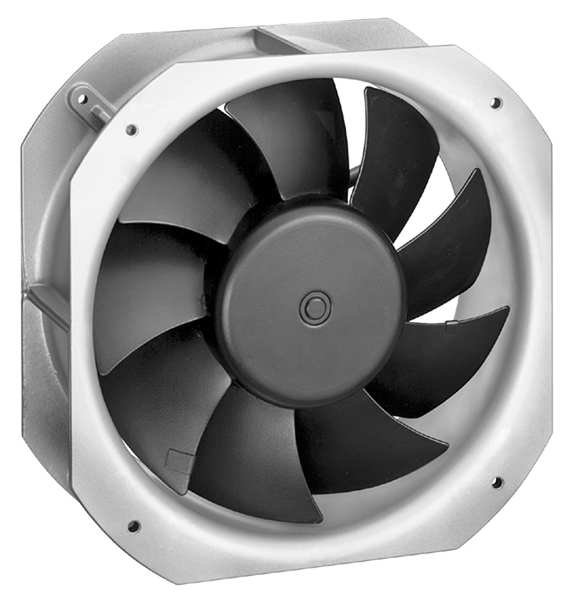

Axial Fan, Square, 24V DC, 642 cfm, 8 7/8 in W., Ebm-Papst, Mfr#: W1G200-HH77-52
$602.99
Free shipping will be applied on orders over $50
Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 9 7/16 in, Height 8 7/8 in, Depth 3 1/8 in, Width 8 7/8 in, CFM @ 0.000-In. SP 642 cfm, Watts 55 W, Voltage 24V DC, 2.6 A Amps, Electrical Connection - Fans Terminals, Sound Level 60, IP Rating IP42, Mounting Position Vertical or Horizontal, Bearing Type Ball, 2950 RPM RPM, Motor Insulation Class B, Max. Ambient Temp. 140 Degrees F, Blade Material Sheet Steel, Housing Material Cast Aluminum
9999 in stock
