| Property | Value |
|---|---|
| Item | HVAC Control Ball Valve |
| Width | 2 1/16 in |
| Closeoff Pressure | 200 psi |
| Valve Type | 3-Way |
| Connection Size | 3/4 in |
| Max. Water Temp. | 284 Degrees F |
| Safe Working Water PSI | 580 psi |
| Connection Type | (F)NPT |
| Includes | Valve Only |
| Height | 1 7/8 in |
| Depth | 2 51/64 in |
| Valve Only/Actuator Included | Valve Only |
| Power Source | Electric Actuator |
| For Use With | M9000 or VA9000 Series Actuators |
| Coefficient of Volume | 7.4 |
| Safe Working Steam PSI | 15 with Thermal Spacer |
| Material | Stainless Steel Trim |
| Application | Control of Hot/Chilled Water |
| Overall Length | 2 1/16 in |
| Manufacturer Series | VG1000 |
| Stem Material | Stainless Steel |
| ANSI Rating | ANSI Leakage Class IV |
| Disk Material | Polyphthalamide Resin |
| Port Connection Gender | Female |
| Operating Temperature - Maximum | 284 Degrees F |
| Rangeability | 500:1 |
| For Media | Steam, Water |
| Leakage Rate | 1 % |
| Resistance Properties | Wear Resistant |
| Actuator Type | Not Applicable |
| Flow Characteristic | Equal Percentage, Linear |
| Actuator Return Action | Not Applicable |
| Overall Height | 1 7/8 in |
| Valve Style | Mixing |
| Port Connection Type | NPT |
| Actuator Control Signal | Not Applicable |
| Includes Characterizing Disk | Disk Included |
| Operating Temperature - Minimum | -22 Degrees F |
| Coefficient of Volume (Cv) | 7.4 |
| Seat Material | Graphite-Reinforced PTFE |
| Bypass Port Coefficient of Volume (Cv) | 4.7 |
| Close-Off Pressure | 200 psi |
| Includes Actuator | Actuator Not Included |
| Trim Material | Stainless Steel |
| Overall Depth | 2 13/16 in |
| Port Types Included | Bypass, Control |
| Actuator Control Pressure - Maximum | Not Applicable |
| Specific Valve Action | Stem Down to Close |
| Actuator Control Pressure - Minimum | Not Applicable |
| Body Material | Brass |
| Body Pattern | Three-Way |
| Ball Material | Stainless Steel |
| Port Connection Size | 3/4 in |
| Gasket Material | EPDM |
| Actuator Input Voltage | Not Applicable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

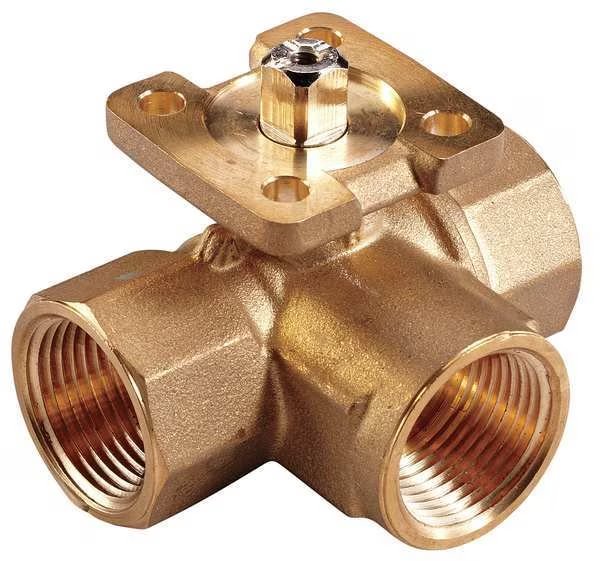

Ball Valve, 3 Way, SS Trim, (F)NPT 3/4, Johnson Controls, Mfr#: VG1845BL
$176.99
Free shipping will be applied on orders over $50
HVAC Control Ball Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal Not Applicable, Actuator Input Voltage Not Applicable, Actuator Return Action Not Applicable, Actuator Type Not Applicable, ANSI Rating ANSI Leakage Class IV, Application Control of Hot/Chilled Water, Ball Material Stainless Steel, Body Material Brass, Body Pattern Three-Way, Bypass Port Coefficient of Volume (Cv) 4.7, Close-Off Pressure 200 psi
9999 in stock
