| Property | Value |
|---|---|
| Item | Beam Clamp |
| Operation | Vertical Lift |
| Safe Working Load | 50,000 lb |
| Material | Steel |
| Jaw Capacity | 6 in to 24 in |
| Lifting Point | Shackle Eye |
| Jaw Material | Steel |
| Locking Type | Locking Screw |
| Standards | ASME B30.20 and BTH-1 |
| Overall Height | 26 in |
| Overall Width | 44 in |
| Attachment Type | Shackle |
| Minimum Beam Thickness | Not Applicable |
| Minimum Beam Width | 6 in |
| Maximum Jaw Opening | 27 in |
| Overall Depth | 14 3/4 in |
| Minimum Jaw Opening | 6 in |
| Maximum Beam Width | 24 in |
| Attachment Diameter | 5 in |
| Working Load Limit | 50,000 lb |
| Maximum Beam Thickness | 3 in |
| Clamp Type | Beam Flange Clamp |
| Beam Mount Location | Top |
| Compatible Beam Shape | Flat |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

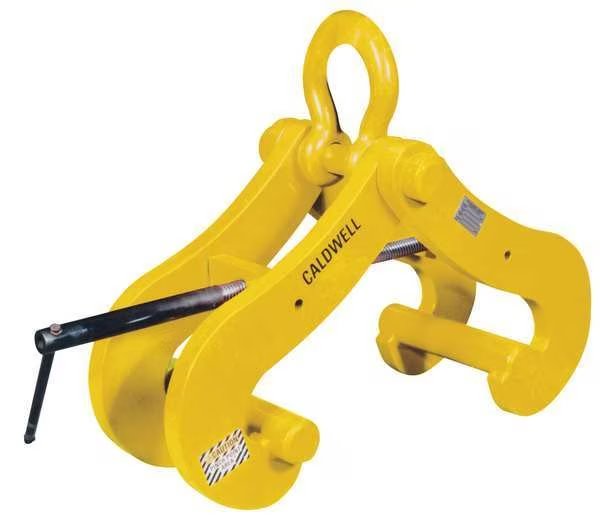

Beam Clamp, 50,000 lb, Vertical, 6 to 24 In, Caldwell, Mfr#: GC-25
$6415.99
Free shipping will be applied on orders over $50
Beam Lifting Clamp, Clamp Type Beam Flange Clamp, Material Steel, Maximum Jaw Opening 27 in, Minimum Jaw Opening 6 in, Working Load Limit 50,000 lb, Attachment Type Shackle, Maximum Beam Thickness 3 in, Compatible Beam Shape Flat, Minimum Beam Thickness Not Applicable, Overall Height 26 in, Attachment Diameter 5 in, Beam Mount Location Top, Maximum Beam Width 24 in, Minimum Beam Width 6 in, Overall Depth 14 3/4 in, Overall Width 44 in, Standards ASME
9999 in stock
